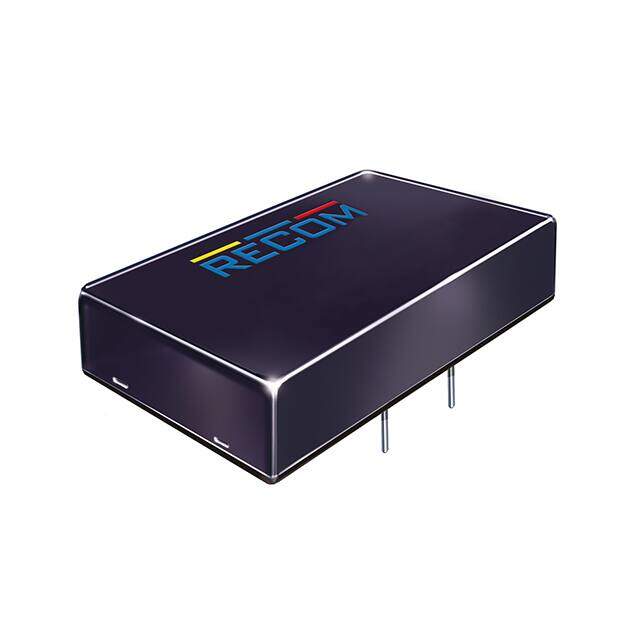

RP20-2405SFR/XC-HC
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 20W 9-36VIN 05VOUT TH
PDF
/
Inventory: 9164
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module, 5 Leads
Weight 40.9g
Technical
Operating Temperature -40°C~79°C
Packaging Tray
Series ECONOLINE RP20-FR (20W)
Size / Dimension 2.00Lx1.00W x 0.66 H 50.8mmx25.4mmx16.8mm
Feature OCP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 20W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-P6
Number of Outputs 1
Efficiency 88%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 36V
Output Voltage 4.5V
Max Output Current 4A
Voltage - Output 1 5V
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Current 4A
Max Output Voltage 5.5V
Dimensions
Height 16.8mm
Length 50.8mm
Width 25.4mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
