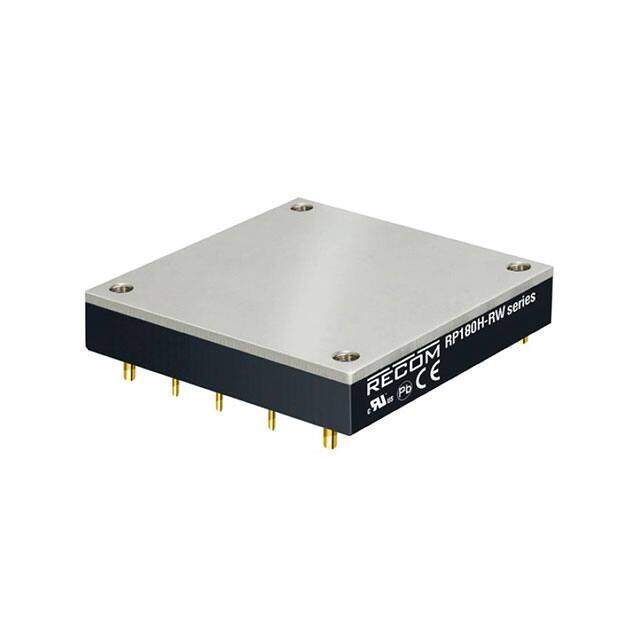

RP180H-11005SRW/P
RoHS
RoHS compliant
RoHS compliantPackage Half Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 160W
PDF
/
Inventory: 5794
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Package / Case Half Brick
Surface Mount NO
Weight 105g
Technical
Operating Temperature -40°C~115°C With Derating
Series POWERLINE RP180-RW (180W)
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Isolated Module
Applications ITE (Commercial), Railway
Power (Watts) 160W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P9
Number of Outputs 1
Efficiency 90%
Voltage - Isolation 3kV
Voltage - Input (Max) 160V
Output Voltage 4V
Voltage - Output 1 5V
Voltage - Input (Min) 43V
Input Voltage-Nom 110V
Trim/Adjustable Output YES
Output Current 32A
Output Power 160W
Max Output Voltage 5.5V
Dimensions
Height 12.7mm
Width 57.9mm
Compliance
RoHS Status ROHS3 Compliant
