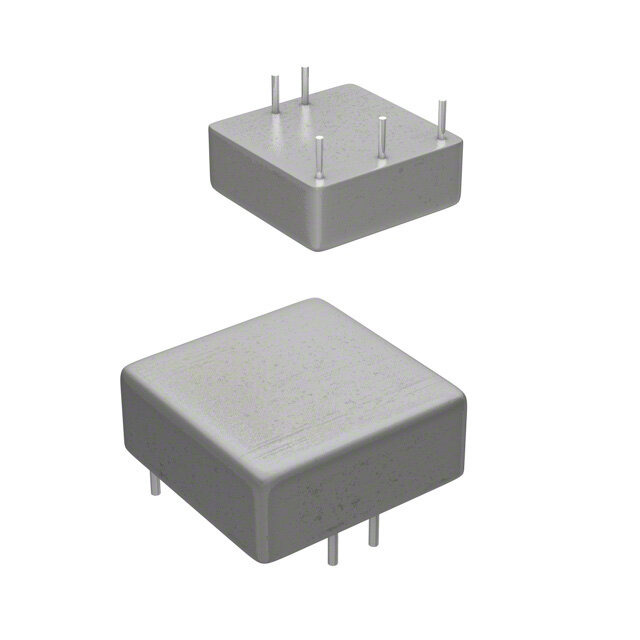

RP15-4812SA/N
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 15W 36-75VIN 12VOUT
PDF
/
Buying Options
Total Price: USD $45.28
Unit Price: USD $45.277982
≥1 USD $45.277982
Inventory: 4558
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module, 4 Leads
Number of Pins 6
Weight 15g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series POWERLINE RP15-A (15W)
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Feature Remote On/Off, OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 15.6W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 88%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 75V
Output Voltage 10.8V
Max Output Current 1.3A
Voltage - Output 1 12V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 1.3A
Output Power 15W
Control Features Enable, Active Low
Max Output Voltage 13.2V
Nominal Input Voltage 48V
Dimensions
Height 9.9mm
Length 25.4mm
Width 25.4mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
