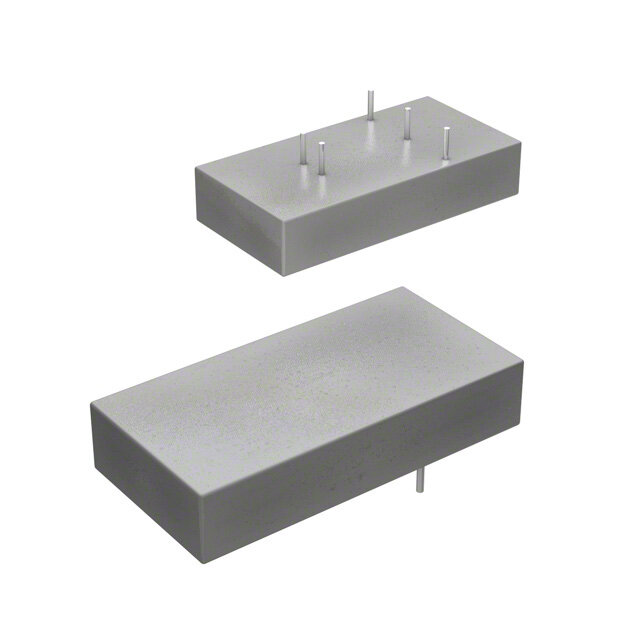

RP15-4805DFW-HC
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 15W 18-75VIN +/-05V
PDF
/
Buying Options
Total Price: USD $84.59
Unit Price: USD $84.58596
≥1 USD $84.58596
≥10 USD $79.79807
≥100 USD $75.2812
≥500 USD $71.02
≥1000 USD $67
≥3000 USD $63.20755
Inventory: 3495
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Weight 37.9g
Technical
Operating Temperature -40°C~65°C
Packaging Tube
Series POWERLINE RP15-FW (15W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 15W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
JESD-30 Code R-PDMA-P6
Number of Outputs 2
Efficiency 82%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 75V
Output Voltage 5V
Max Output Current 1.5A
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 1.5A 1.5A
Output Current 1.5A
Output Power 15W
Max Output Voltage 5V
Voltage - Output 2 -5V
Nominal Input Voltage 48V
Dimensions
Height 16.8mm
Length 50.8mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
