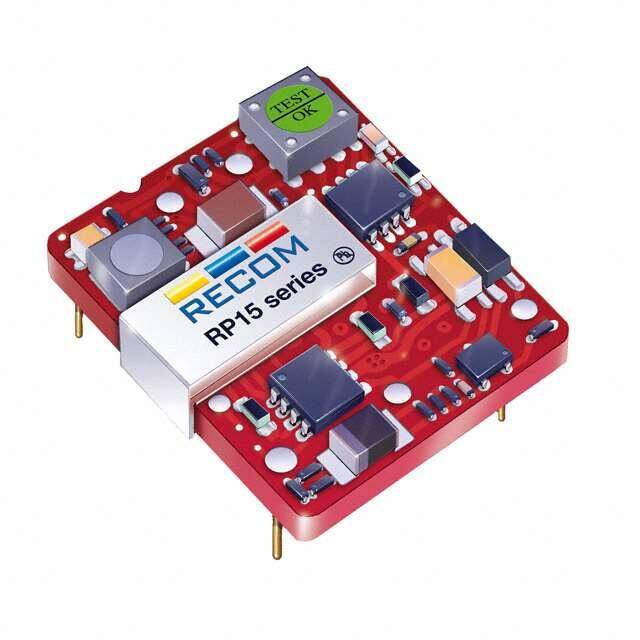

RP15-243.3SOFW/P-R
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 24VIN 1-OUT 3.3V 4A 15W 6-Pin DIP SMD T/R
PDF
/
Inventory: 7244
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Control Features Enable, Active High
Current - Output (Max) 4A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Voltage - Output 1 3.3V
Output Voltage 3.3V
Voltage - Input (Max) 36V
Voltage - Isolation 2.25kV
Efficiency 85%
Number of Outputs 1
JESD-30 Code R-XXMA-B6
Number of Functions 1
Terminal Form BALL
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 15W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 1.10Lx0.94W x 0.33 H 27.9mmx23.9mmx8.5mm
Series POWERLINE RP15-SOFW (15W)
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 6-SMD Module
Mounting Type Surface Mount
