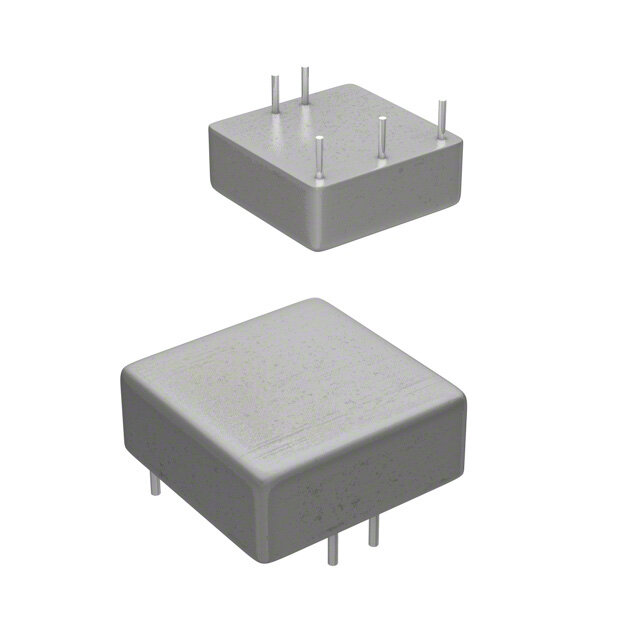

RP15-2415DA/P-HC
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 15W 18-36VIN +/-15V
PDF
/
Inventory: 5146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 16.5mm
Technical
Isolation Isolated
Nominal Input Voltage 24V
Voltage - Output 2 -15V
Max Output Voltage 15V
Control Features Enable, Active High
Output Power 15W
Output Current 500mA
Current - Output (Max) 500mA 500mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Max Output Current 500mA
Output Voltage 15V
Voltage - Input (Max) 36V
Voltage - Isolation 1.6kV
Efficiency 88%
Qualification Status Not Qualified
Number of Outputs 2
Depth 25.4mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 15W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Series POWERLINE RP15-A (15W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 21.4g
Number of Pins 6
Package / Case 6-DIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
