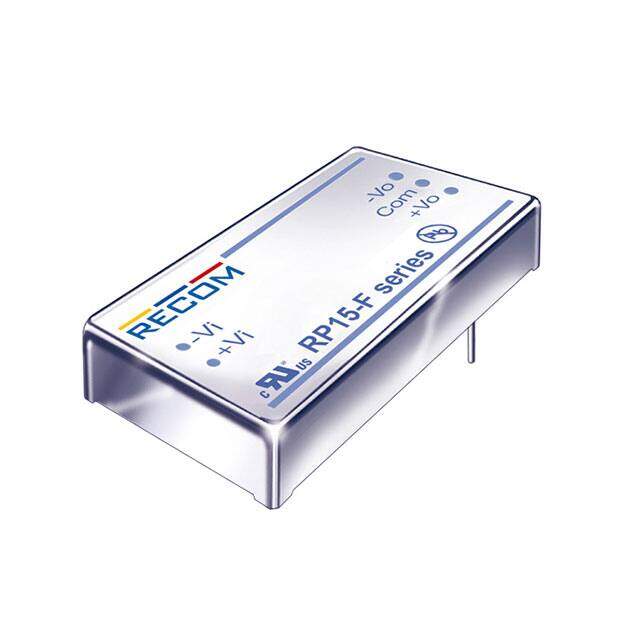

RP15-1205DF
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 15W 9-18VIN +/-05VOUT
PDF
/
Buying Options
Total Price: USD $59.35
Unit Price: USD $59.3472
≥1 USD $59.3472
≥10 USD $57.10144
≥100 USD $56.65264
≥500 USD $54.85392
≥1000 USD $52.156192
≥3000 USD $48.559104
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series POWERLINE RP15-F (15W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature OCP, OVP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 15W
Subcategory Other Analog ICs
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
JESD-30 Code R-XDMA-P5
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 83%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 18V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 1.5A 1.5A
Voltage - Output 2 -5V
Total Power Output-Max 15W
Dimensions
Height Seated (Max) 10.7mm
Length 50.8mm
Compliance
RoHS Status ROHS3 Compliant
