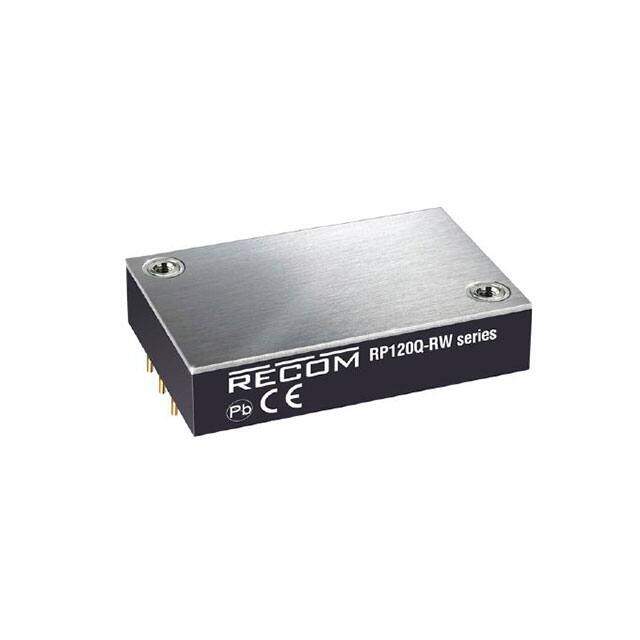

RP120Q-4815SRW/N
RoHS
RoHS compliant
RoHS compliantPackage Quarter Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V 120W
PDF
/
Inventory: 2262
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 36.8mm
Length 57.9mm
Height 12.7mm
Technical
Max Output Voltage 16.5V
Output Current 8A
Current - Output (Max) 8A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Output 1 15V
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 2.25kV
Efficiency 90%
Number of Outputs 1
JESD-30 Code R-PDMA-P8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 120W
Applications ITE (Commercial), Railway
Type Isolated Module
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OCP, OTP, OVP, SCP, UVLO
Size / Dimension 2.28Lx1.45W x 0.50 H 57.9mmx36.8mmx12.7mm
Series POWERLINE RP120-RW (120W)
Operating Temperature -40°C~100°C With Derating
Physical
Weight 64g
Surface Mount NO
Package / Case Quarter Brick
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
