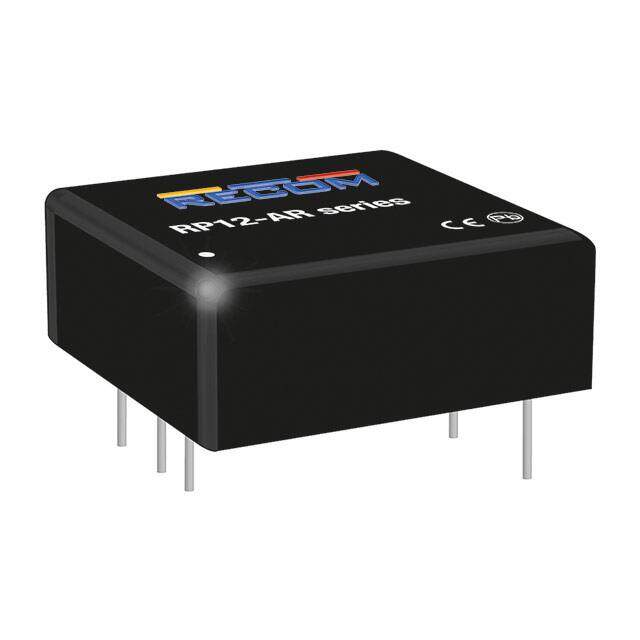

RP12-11005SAR/N
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
12W DC/DC-CONVERTER POWERLINE
PDF
/
Inventory: 7087
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Control Features Enable, Active Low
Current - Output (Max) 2.4A
Voltage - Input (Min) 36V
Voltage - Output 1 5V
Voltage - Input (Max) 160V
Voltage - Isolation 3kV
Efficiency 89%
Number of Outputs 1
Power (Watts) 12W
Applications ITE (Commercial), Railway
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Series POWERLINE RP12-AR (12W)
Operating Temperature -40°C~100°C With Derating
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
