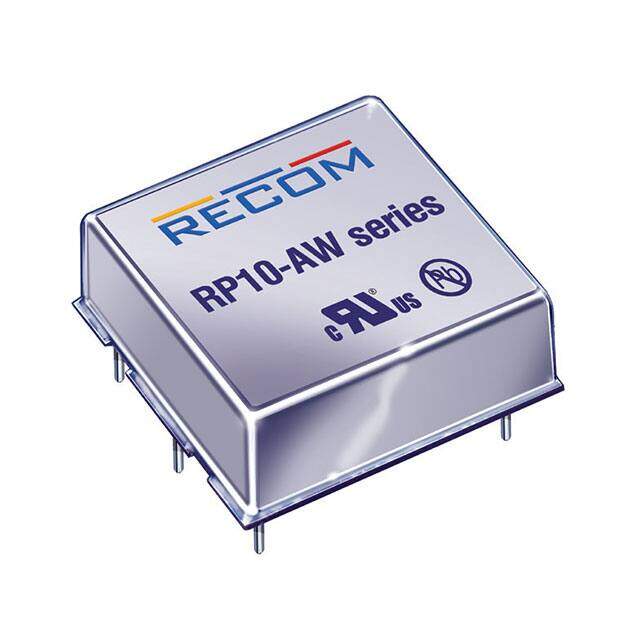

RP10-4815SAW/N image
Favorite
RP10-4815SAW/N image
Favorite

RP10-4815SAW/N

Recom Power
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 10W 18-75VIN 15VOUT 1
PDF
/
Inventory: 9730
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 25.4mm
Length 25.4mm
Height 9.9mm

Technical

Max Output Voltage 18V
Control Features Enable, Active Low
Output Power 10W
Output Current 670mA
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 15V
Max Output Current 670mA
Output Voltage 13.5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 90%
Number of Outputs 1
JESD-30 Code S-XDMA-P6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OVP, SCP, UVLO
JESD-609 Code e3
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Series POWERLINE RP10-AW (10W)
Packaging Tube
Operating Temperature -40°C~81°C

Physical

Weight 16.5g
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 12 Weeks
