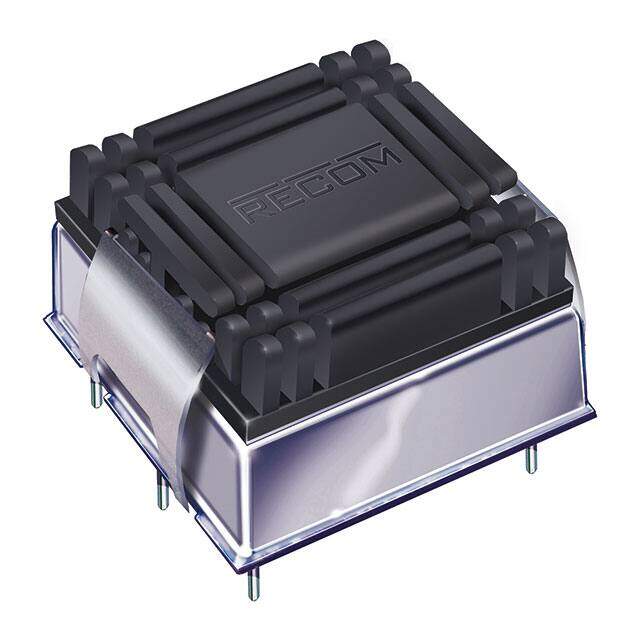

RP10-243.3SAW-HC image
Favorite
RP10-243.3SAW-HC image
Favorite

RP10-243.3SAW-HC

Recom Power
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 10W 9-36VIN 3.3VOUT 1
PDF
/
Inventory: 6995
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 10W
Max Power Dissipation 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-XDMA-P6
Number of Outputs 1
Efficiency 85%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 36V
Output Voltage 3.3V
Max Output Current 3A
Voltage - Output 1 3.3V
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Total Power Output-Max 9.9W
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OCP, OVP, SCP, UVLO
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Series POWERLINE RP10-AW (10W)
Packaging Tube
Operating Temperature -40°C~81°C

Dimensions

Height 9.906mm
Length 25.4mm
Width 25.4mm

Compliance

RoHS Status ROHS3 Compliant

Physical

Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole
