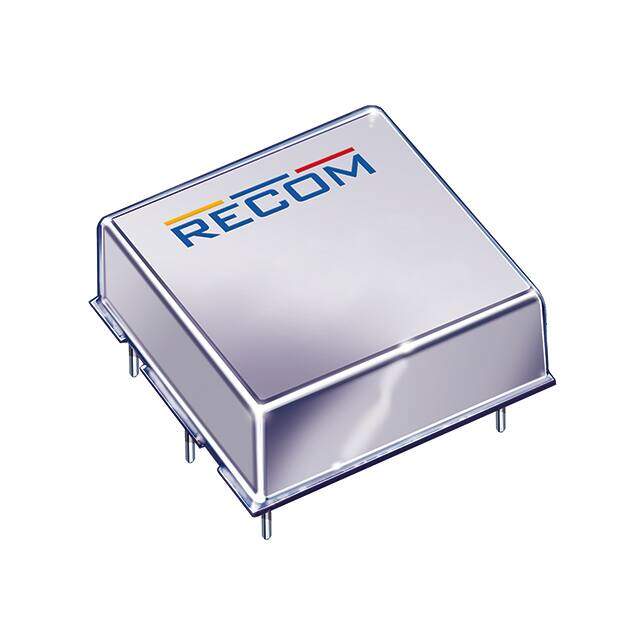

RP10-1215DA/N

Recom Power
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 10W 9-18VIN +/-15VOUT
PDF
/
Inventory: 6600
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height 9.9mm

Technical

Voltage - Output 2 -15V
Max Output Voltage 15V
Control Features Enable, Active Low
Output Power 10W
Output Current 333mA
Current - Output (Max) 333mA 333mA
Voltage - Input (Min) 9V
Max Output Current 333mA
Output Voltage 15V
Voltage - Input (Max) 18V
Voltage - Isolation 1.6kV
Efficiency 90%
Number of Outputs 2
Max Power Dissipation 10W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Series POWERLINE RP10-A (10W)
Packaging Tube
Operating Temperature -40°C~80°C

Physical

Weight 16.5g
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 12 Weeks
