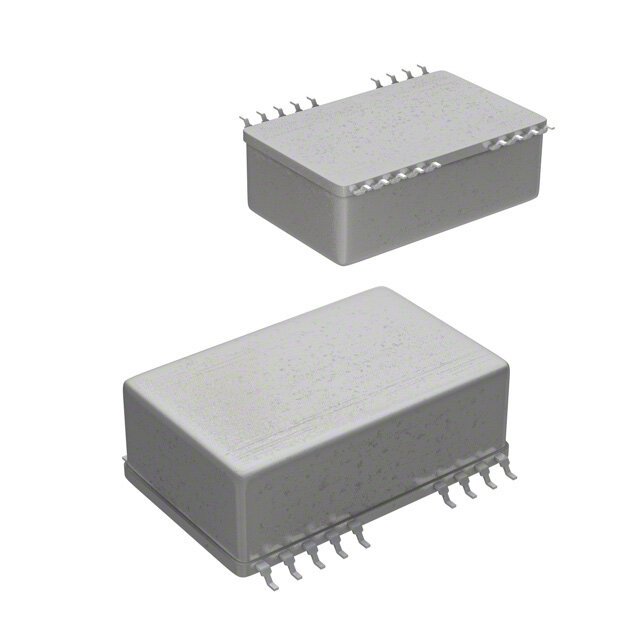

RP08-4815SAW/SMD
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module, 18 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 8W 18-75VIN 15VOUT
PDF
/
Inventory: 2313
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 24-SMD Module, 18 Leads
Surface Mount YES
Weight 20g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series POWERLINE RP08-W (8W)
Size / Dimension 1.26Lx0.80W x 0.44 H 32.0mmx20.3mmx11.2mm
Feature Remote On/Off, OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Railway
Power (Watts) 8W
Subcategory Other Analog ICs
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-G9
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 86%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 75V
Output Voltage 15V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Output Current 533mA
Output Power 8W
Control Features Enable, Active High
Max Output Voltage 15V
Total Power Output-Max 7.995W
Nominal Input Voltage 48V
Dimensions
Height 10.9mm
Width 20.3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
