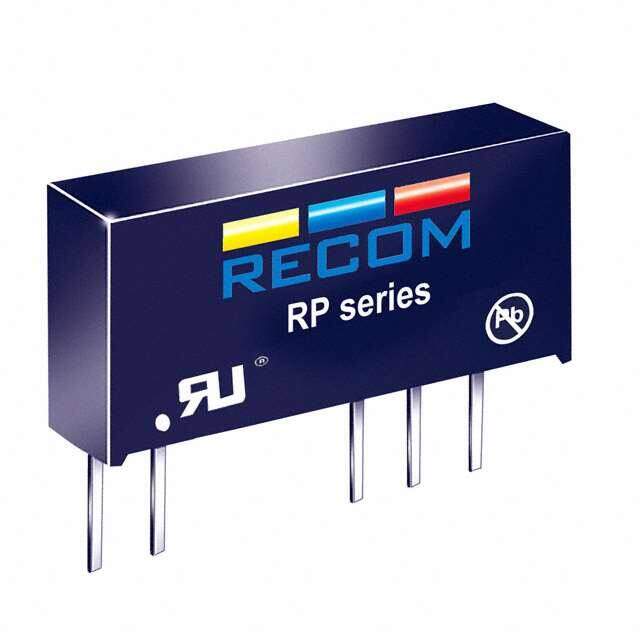

RP-153.3D
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 15VIN +/-3.3VOUT
PDF
/
Inventory: 6758
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Weight 2.4g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE RP (1W)
Size / Dimension 0.77Lx0.28W x 0.40 H 19.7mmx7.1mmx10.2mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 7/5
JESD-30 Code R-XSMA-P5
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 70%
Voltage - Isolation 5.2kV
Voltage - Input (Max) 16.5V
Output Voltage 3.3V
Max Output Current 152mA
Voltage - Input (Min) 13.5V
Input Voltage-Nom 15V
Trim/Adjustable Output NO
Current - Output (Max) 152mA 152mA
Output Current 152mA
Output Power 1W
Max Output Voltage 3.3V
Voltage - Output 2 -3.3V
Total Power Output-Max 1W
Nominal Input Voltage 15V
Dimensions
Height 10.2mm
Length 19.65mm
Width 7.05mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
