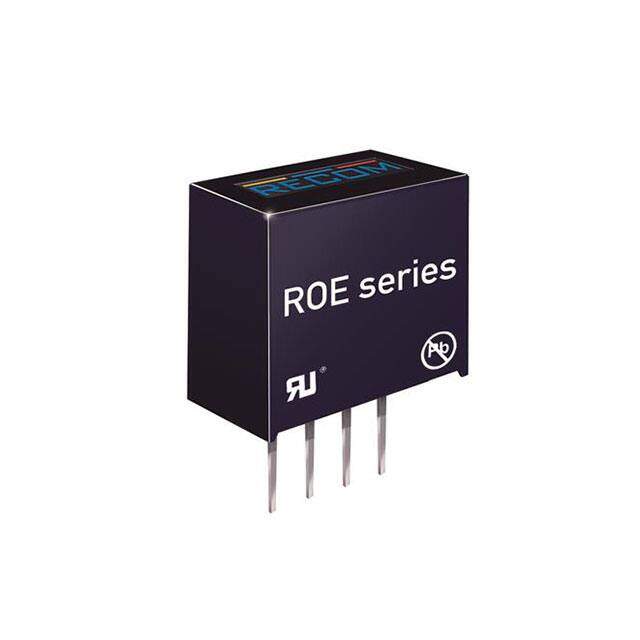

ROE-0515S
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
RECOM POWER ROE-0515SIsolated Board Mount DC/DC Converter, Medical, Fixed, 1 Output, 4.5 V, 5.5 V, 1 W, 15 V
PDF
/
Buying Options
Total Price: USD $3.12
Unit Price: USD $3.124
≥1 USD $3.124
≥10 USD $3.08176
≥100 USD $3.03688
≥500 USD $2.947648
≥1000 USD $2.858416
≥3000 USD $2.769096
Inventory: 1909
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Height 10mm
Technical
Total Power Output-Max 1W
Max Output Voltage 15V
Output Power 1W
Output Current 66mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 66mA
Output Voltage 15V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 80%
Number of Outputs 1
JESD-30 Code R-PSMA-P4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.45Lx0.24W x 0.39 H 11.5mmx6.0mmx10.0mm
Series ECONOLINE ROE (E-Series) (1W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 1.4g
Package / Case 4-SIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
