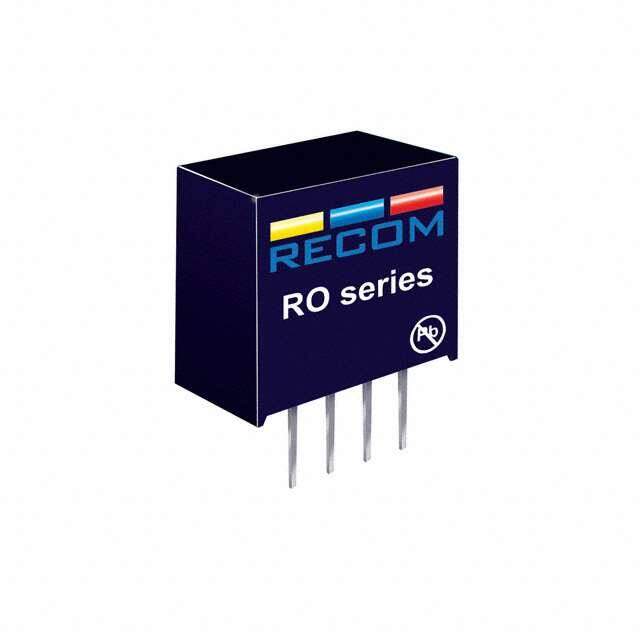

RO-3.305S/E
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 1W
PDF
/
Buying Options
Total Price: USD $6.62
Unit Price: USD $6.6176
≥1 USD $6.6176
≥10 USD $6.4064
≥100 USD $6.1248
≥500 USD $5.9312
≥1000 USD $5.8432
≥3000 USD $5.676
Inventory: 1145
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 6mm
Height 10mm
Technical
Nominal Input Voltage (DC) 3.3V
Min Input Voltage (DC) 2.97V
Max Input Voltage (DC) 3.63V
Nominal Output Voltage 5V
Isolation Isolated
Max Output Power 1W
Nominal Input Voltage 3.3V
Current - Output 1 200mA
Max Output Voltage 5V
Output Power 1W
Output Current 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 3.3V
Max Output Current 200mA
Output Voltage 5V
Voltage - Isolation 1kV
Efficiency 83%
Qualification Status Not Qualified
Number of Outputs 1
Depth 11.5mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.45Lx0.24W x 0.39 H 11.5mmx6.0mmx10.0mm
Series ECONOLINE RO/E (1W)
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Weight 1.4g
Number of Pins 4
Package / Case 4-SIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
