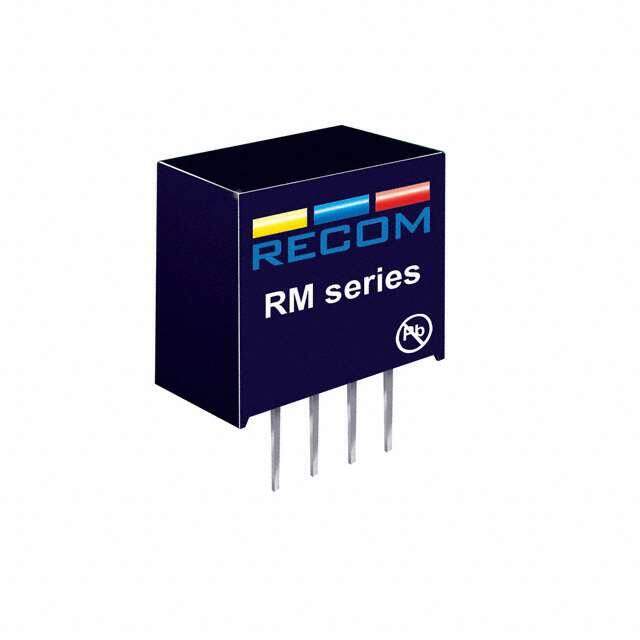

RM-1212S
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
0.25W DC/DC-Converter 'ECONOLINE' SIP4 1kV unreg; V. In: 12; V. Out: 12; mA. Out: 21
PDF
/
Buying Options
Total Price: USD $6.31
Unit Price: USD $6.31238
≥1 USD $6.31238
≥10 USD $5.95508
≥100 USD $5.618
≥500 USD $5.3
≥1000 USD $5
≥3000 USD $4.71698
Inventory: 2204
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 10mm
Technical
Min Input Voltage (DC) 10.8V
Max Input Voltage (DC) 13.2V
Nominal Output Voltage 12V
Isolation Isolated
Max Output Power 250mW
Nominal Input Voltage 12V
Current - Output 1 21mA
Max Output Voltage 12V
Output Power 250mW
Output Current 21mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Max Output Current 21mA
Output Voltage 12V
Voltage - Isolation 1kV
Efficiency 72%
Qualification Status Not Qualified
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 11.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 250mW
Power Rating 250mW
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.45Lx0.24W x 0.39 H 11.5mmx6.0mmx10.0mm
Series ECONOLINE RM (0.25W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 1.4g
Number of Pins 4
Package / Case 4-SIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 9 Weeks
