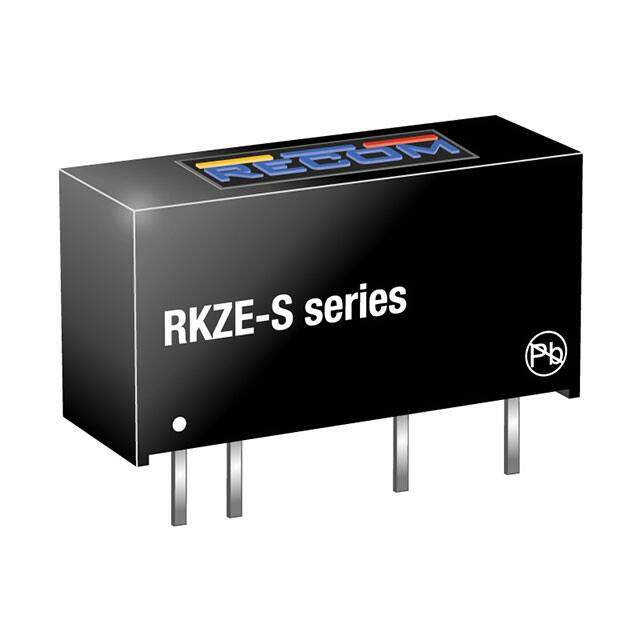

RKZE-0509S/P
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
2W DC/DC-CONVERTER 'ECONOLINE' S
PDF
/
Inventory: 8111
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output (Max) 222mA
Voltage - Input (Min) 4.5V
Voltage - Output 1 9V
Voltage - Input (Max) 5.5V
Voltage - Isolation 3kV
Efficiency 85%
Number of Outputs 1
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.77Lx0.28W x 0.40 H 19.7mmx7.1mmx10.2mm
Series RKZE (2W)
Operating Temperature -40°C~80°C
Physical
Package / Case 7-SIP Module, 4 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 9 Weeks
