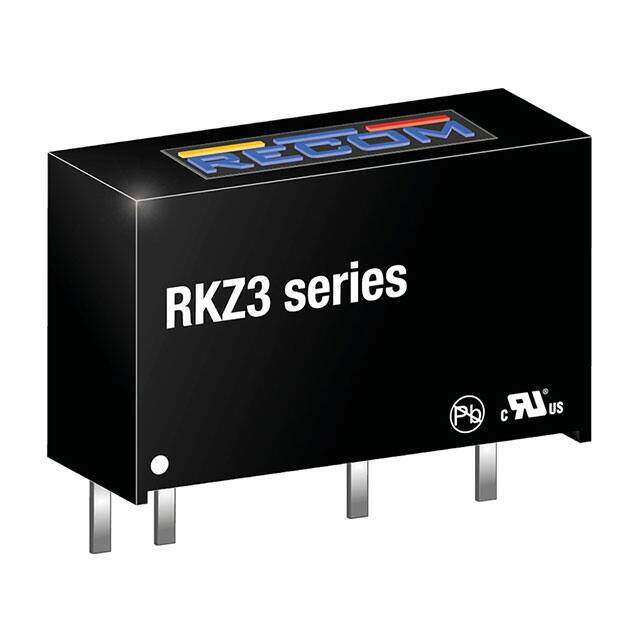

RKZ3-2412S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 3W
PDF
/
Buying Options
Total Price: USD $8.44
Unit Price: USD $8.4392
≥1 USD $8.4392
≥10 USD $8.3688
≥100 USD $8.30456
≥500 USD $8.17696
≥1000 USD $7.921408
≥3000 USD $7.2248
Inventory: 97
Minimum: 1
-
+
Technical Details
Technical
Voltage - Input (Max) 26.4V
Output Voltage 12V
Voltage - Input (Min) 21.6V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 250mA
Output Current 250mA
Output Power 3W
Max Output Voltage 12V
Total Power Output-Max 3W
Voltage - Isolation 3kV
Efficiency 90%
Number of Outputs 1
JESD-30 Code R-PSMA-P4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.77Lx0.30W x 0.48 H 19.6mmx7.5mmx12.2mm
Series RKZ3 (3W)
Operating Temperature -40°C~90°C
Physical
Weight 2.8g
Surface Mount NO
Package / Case 7-SIP Module, 4 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 9 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Height 12.2mm
