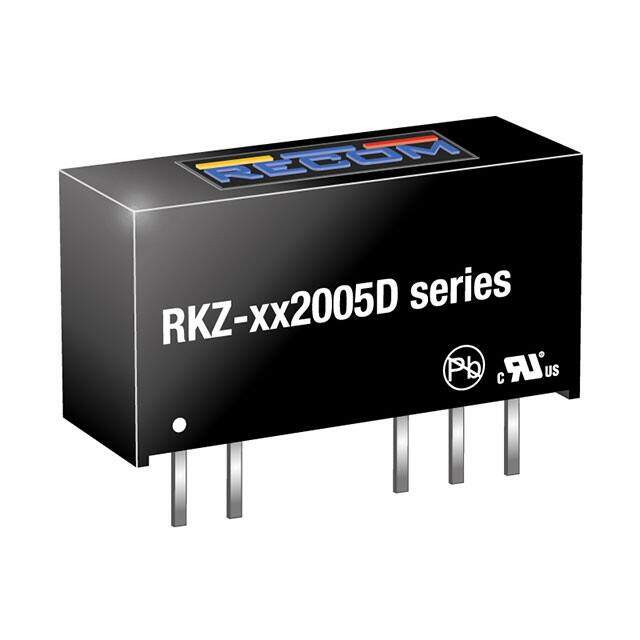

RKZ-122005D
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 2W 12VIN +20/-5VOUT T
PDF
/
Buying Options
Total Price: USD $6.3
Unit Price: USD $6.3008
≥1 USD $6.3008
≥10 USD $6.20928
≥100 USD $6.11952
≥500 USD $5.939296
≥1000 USD $5.759424
≥3000 USD $5.579464
Inventory: 109
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 19.65mm
Height 10.2mm
Technical
Total Power Output-Max 2W
Voltage - Output 2 -5V
Max Output Voltage 20V
Output Power 2W
Current - Output (Max) 50mA 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 13.2V
Voltage - Isolation 3kV
Efficiency 86%
Number of Outputs 2
JESD-30 Code R-PSMA-P5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.77Lx0.28W x 0.40 H 19.7mmx7.1mmx10.2mm
Series ECONOLINE RKZ-xx2005D (2W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 2.8g
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
