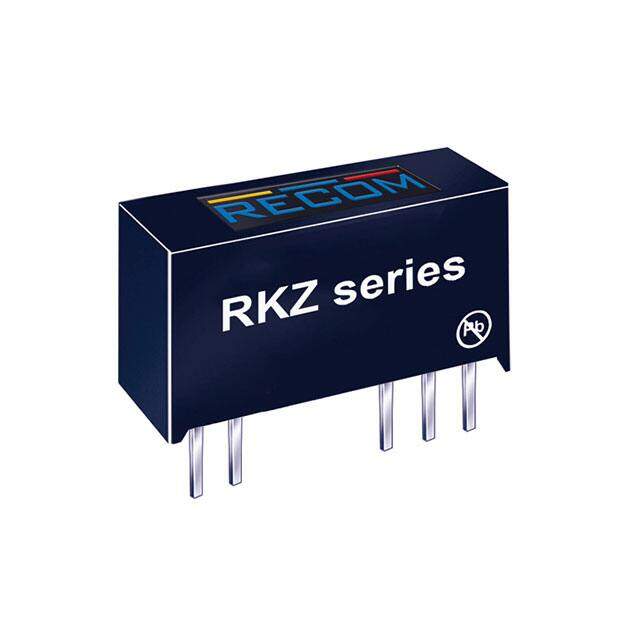

RKZ-0505D/P image
Favorite
RKZ-0505D/P image
Favorite

RKZ-0505D/P

Recom Power
RoHS
RoHS RoHS compliant
Package 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 2W 05VIN +/-05VOUT
PDF
/
Buying Options
Total Price: USD $11.36
Unit Price: USD $11.36229
≥1 USD $11.36229
≥10 USD $10.71914
≥100 USD $10.1124
≥500 USD $9.54
≥1000 USD $9
≥3000 USD $8.49057
Inventory: 8423
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 7.05mm
Length 19.65mm
Height 10.2mm

Technical

Nominal Input Voltage 5V
Total Power Output-Max 2W
Voltage - Output 2 -5V
Max Output Voltage 5V
Output Power 2W
Output Current 200mA
Current - Output (Max) 200mA 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 3kV
Efficiency 82%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-PSMA-T5
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2W
Subcategory Other Analog ICs
Applications ITE (Commercial), Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.28W x 0.40 H 19.7mmx7.1mmx10.2mm
Series ECONOLINE RKZ (2W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Weight 2.8g
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 9 Weeks
