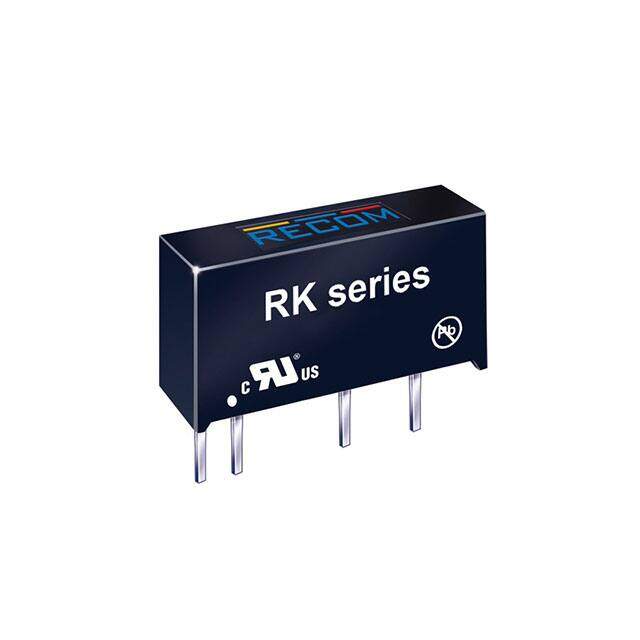

RK-2415S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
1W DC/DC-Converter 'ECONOLINE' SIP7 3kV unreg; V. In: 24; V. Out: 15; mA. Out: 66
PDF
/
Buying Options
Total Price: USD $7.64
Unit Price: USD $7.6384
≥1 USD $7.6384
≥10 USD $7.52752
≥100 USD $7.4184
≥500 USD $7.200512
≥1000 USD $6.982448
≥3000 USD $6.764208
Inventory: 80
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Number of Pins 4
Weight 2.6g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE RK (1W)
Size / Dimension 0.77Lx0.24W x 0.40 H 19.7mmx6.0mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Subcategory Other Analog ICs
Power Rating 1W
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 19.6mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 7/4
JESD-30 Code R-PSIP-T7
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 82%
Voltage - Isolation 3kV
Output Voltage 15V
Max Output Current 66mA
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Current 66mA
Output Power 1W
Max Output Voltage 15V
Current - Output 1 66mA
Nominal Input Voltage 24V
Max Output Power 1W
Isolation Isolated
Nominal Output Voltage 15V
Max Input Voltage (DC) 26.4V
Min Input Voltage (DC) 21.6V
Dimensions
Height 10.2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
