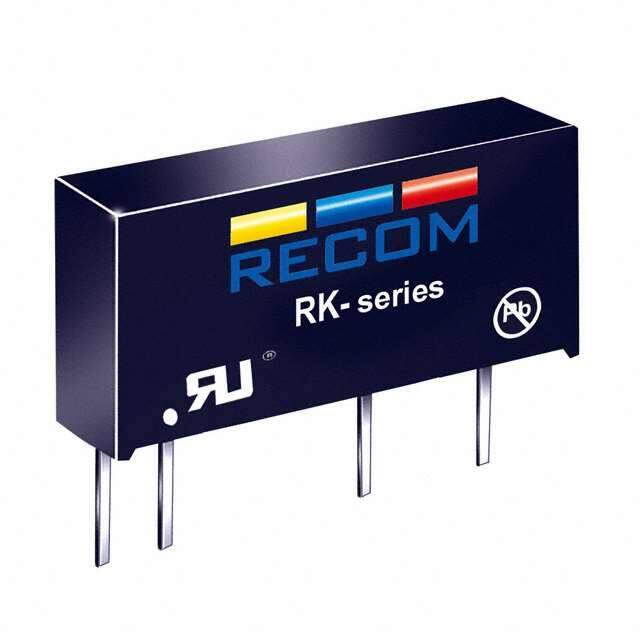

RK-1512S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 15VIN 12VOUT
PDF
/
Buying Options
Total Price: USD $7.64
Unit Price: USD $7.6384
≥1 USD $7.6384
≥10 USD $7.52752
≥100 USD $7.4184
≥500 USD $7.200512
≥1000 USD $6.982448
≥3000 USD $6.764208
Inventory: 96
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Number of Pins 4
Weight 2.6g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE RK (1W)
Size / Dimension 0.77Lx0.24W x 0.40 H 19.7mmx6.0mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 6mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 7/4
JESD-30 Code R-PSIP-T7
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 85%
Voltage - Isolation 3kV
Voltage - Input (Max) 16.5V
Output Voltage 12V
Max Output Current 84mA
Voltage - Input (Min) 13.5V
Input Voltage-Nom 15V
Trim/Adjustable Output NO
Output Current 84mA
Output Power 1W
Max Output Voltage 12V
Total Power Output-Max 1W
Nominal Input Voltage 15V
Isolation Isolated
Dimensions
Height 10.2mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
