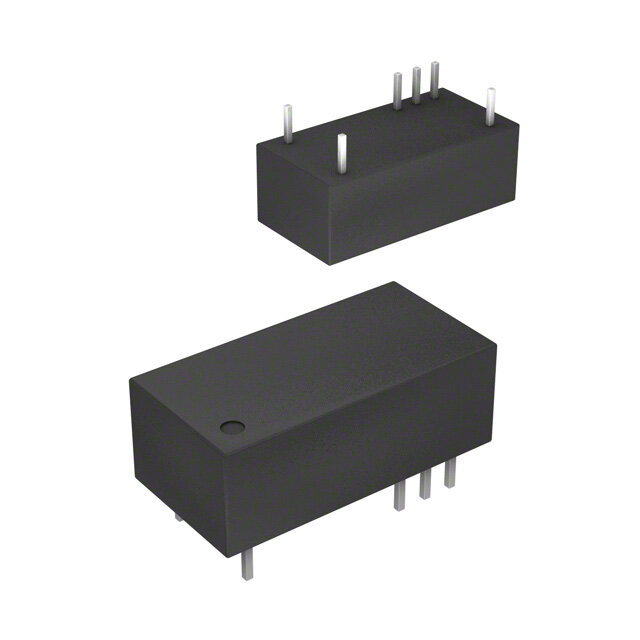

RJZ-3.309S
RoHS
RoHS compliant
RoHS compliantPackage 14-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 3.3VIN 1-OUT 9V 0.222A 2W Medical 5-Pin DIP Tube
PDF
/
Inventory: 1432
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 14-DIP Module, 6 Leads
Number of Pins 5
Weight 2.8g
Technical
Operating Temperature -40°C~90°C
Packaging Tube
Series ECONOLINE RJZ (2W)
Size / Dimension 0.78Lx0.39W x 0.28 H 19.7mmx10.0mmx7.1mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Additional Feature SEATED HGT CALCULATED
Subcategory Other Analog ICs
Max Power Dissipation 2W
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 10mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-T6
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 84%
Voltage - Isolation 3kV
Voltage - Input (Max) 3.63V
Output Voltage 9V
Max Output Current 222mA
Voltage - Input (Min) 2.97V
Input Voltage-Nom 3.3V
Trim/Adjustable Output NO
Output Current 222mA
Output Power 2W
Max Output Voltage 9V
Total Power Output-Max 2W
Isolation Isolated
Dimensions
Height 7.1mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
