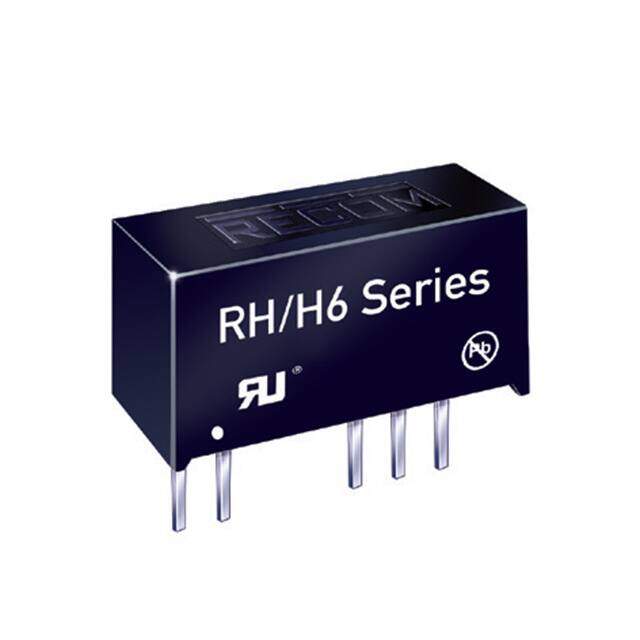

RH-2405D/H6
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 1W
PDF
/
Buying Options
Total Price: USD $8.89
Unit Price: USD $8.888
≥1 USD $8.888
≥10 USD $8.81936
≥100 USD $8.75248
≥500 USD $8.617664
≥1000 USD $8.34856
≥3000 USD $7.612
Inventory: 127
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 7.05mm
Length 19.65mm
Height 10.2mm
Technical
Total Power Output-Max 1W
Voltage - Output 2 -5V
Max Output Voltage 5V
Output Power 1W
Output Current 100mA
Current - Output (Max) 100mA 100mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Max Output Current 100mA
Output Voltage 5V
Voltage - Input (Max) 26.4V
Voltage - Isolation 6.4kV
Efficiency 77%
Number of Outputs 2
JESD-30 Code R-PSMA-T7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.28W x 0.40 H 19.6mmx7.0mmx10.2mm
Series ECONOLINE RH/H6 (1W)
Packaging Tube
Operating Temperature -40°C~90°C
Physical
Weight 2.7g
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
