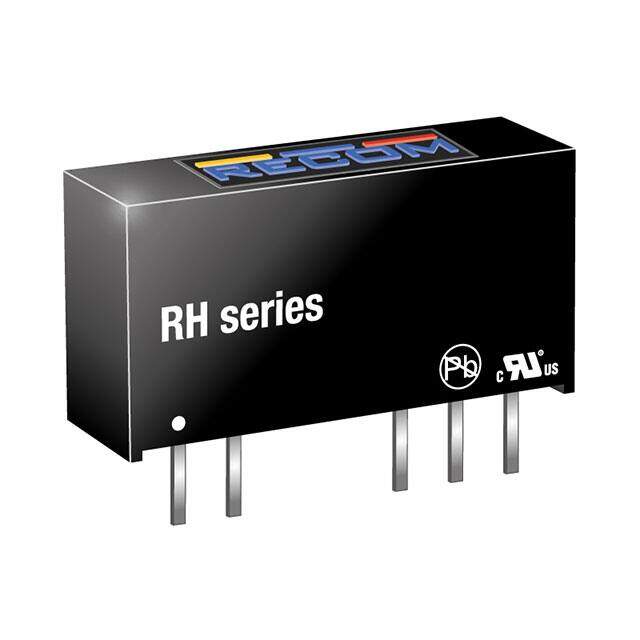

RH-0509D
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 05VIN +/-09VOUT
PDF
/
Buying Options
Total Price: USD $7.36
Unit Price: USD $7.3568
≥1 USD $7.3568
≥10 USD $7.29168
≥100 USD $7.23624
≥500 USD $7.12448
≥1000 USD $6.902016
≥3000 USD $6.3008
Inventory: 32
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 10.2mm
Technical
Isolation Isolated
Nominal Input Voltage 5V
Total Power Output-Max 1W
Voltage - Output 2 -9V
Max Output Voltage 9V
Output Power 1W
Output Current 56mA
Current - Output (Max) 56mA 56mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 56mA
Output Voltage 9V
Voltage - Input (Max) 5.5V
Voltage - Isolation 3kV
Efficiency 79%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-PSIP-T7
Pin Count 7/5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 6mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial), Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.77Lx0.24W x 0.40 H 19.6mmx6.0mmx10.2mm
Series ECONOLINE RH (1W)
Packaging Tube
Operating Temperature -40°C~90°C
Physical
Weight 2.6g
Number of Pins 5
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
