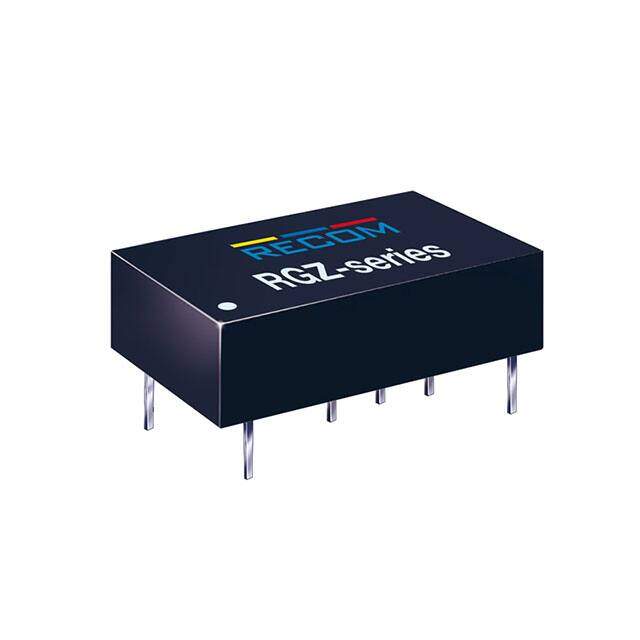

RGZ-0912D
RoHS
RoHS compliant
RoHS compliantPackage 14-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 2W 09VIN +/-12VOUT
PDF
/
Inventory: 4521
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 10mm
Length 19.9mm
Height 7.1mm
Technical
Nominal Input Voltage 9V
Total Power Output-Max 2W
Voltage - Output 2 -12V
Max Output Voltage 12V
Output Power 2W
Output Current 84mA
Current - Output (Max) 84mA 84mA
Trim/Adjustable Output NO
Input Voltage-Nom 9V
Voltage - Input (Min) 8.1V
Max Output Current 84mA
Output Voltage 12V
Voltage - Input (Max) 9.9V
Voltage - Isolation 3kV
Efficiency 82%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-XDMA-T6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 2W
Subcategory Other Analog ICs
Additional Feature SEATED HGT CALCULATED
Applications ITE (Commercial), Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.78Lx0.39W x 0.28 H 19.7mmx10.0mmx7.1mm
Series ECONOLINE RGZ (2W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 2.8g
Package / Case 14-DIP Module, 6 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
