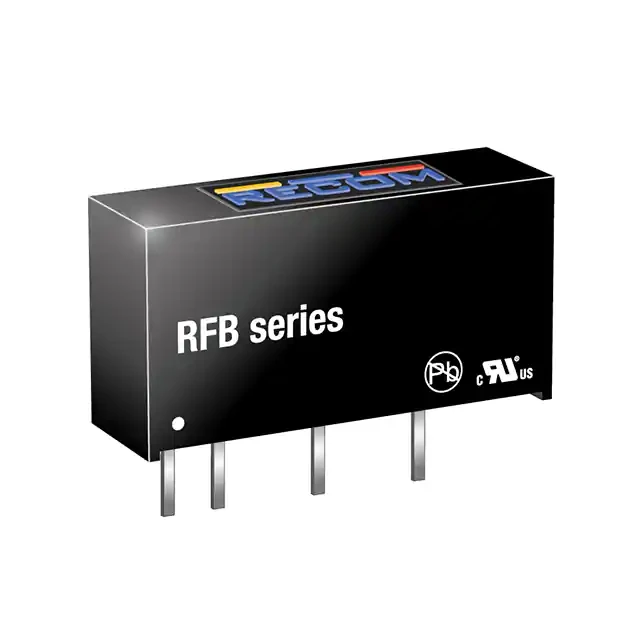

RFB-0505S
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 1W
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.7864
≥1 USD $1.7864
≥10 USD $1.76352
≥100 USD $1.738
≥500 USD $1.686432
≥1000 USD $1.635392
≥3000 USD $1.584264
Inventory: 5354
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case 6-SIP Module, 4 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series RFB (1W)
Size / Dimension 0.77Lx0.24W x 0.40 H 19.6mmx6.0mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 1W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PSMA-T4
Number of Outputs 1
Efficiency 80%
Voltage - Isolation 1kV
Voltage - Input (Max) 5V
Output Voltage 5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 200mA
Input Voltage (Min) 4.5V
Total Power Output-Max 1W
Output Voltage-Max 5.25V
Output Voltage-Min 4.75V
Dimensions
Width 6mm
Compliance
RoHS Status ROHS3 Compliant
