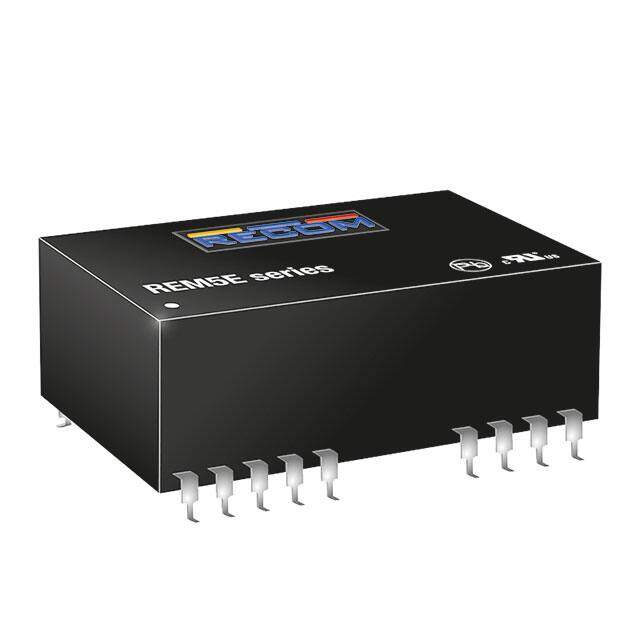

REM5E-4805D/R6/A/SMD
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
5W DC/DC-CONVERTER MEDLINE SMD
PDF
/
Buying Options
Total Price: USD $53.02
Unit Price: USD $53.02403
≥1 USD $53.02403
≥10 USD $50.02267
≥100 USD $47.1912
≥500 USD $44.52
≥1000 USD $42
≥3000 USD $39.62264
Inventory: 6440
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output 2 -5V
Current - Output (Max) 500mA 500mA
Voltage - Input (Min) 36V
Voltage - Output 1 5V
Voltage - Input (Max) 75V
Voltage - Isolation 6kV
Efficiency 82%
Number of Outputs 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power (Watts) 5W
Applications Medical
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series MEDLINE REM5E (5W)
Operating Temperature -40°C~80°C
Physical
Package / Case 24-DIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 9 Weeks
