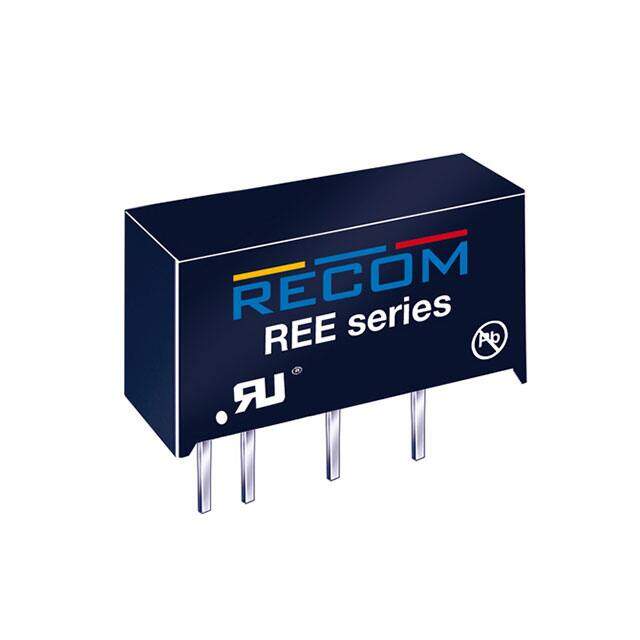

REE-0505S image
Favorite
REE-0505S image
Favorite

REE-0505S

Recom Power
RoHS
RoHS RoHS compliant
Package 6-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 1W
PDF
/
Buying Options
Total Price: USD $2.82
Unit Price: USD $2.816
≥1 USD $2.816
≥10 USD $2.77552
≥100 USD $2.73504
≥500 USD $2.654432
≥1000 USD $2.574
≥3000 USD $2.493568
Inventory: 1248
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 6-SIP Module, 4 Leads
Number of Pins 4
Weight 2.2g

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE REE (E-Series) (1W)
Size / Dimension 0.77Lx0.24W x 0.40 H 19.7mmx6.0mmx10.2mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power Rating 1W
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Depth 6mm
Number of Outputs 1
Efficiency 76%
Voltage - Isolation 1kV
Output Voltage 5V
Max Output Current 200mA
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 200mA
Output Power 1W
Max Output Voltage 5V
Current - Output 1 200mA
Nominal Input Voltage 5V
Max Output Power 1W
Isolation Isolated
Nominal Output Voltage 5V
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 4.5V

Dimensions

Height 10.2mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
