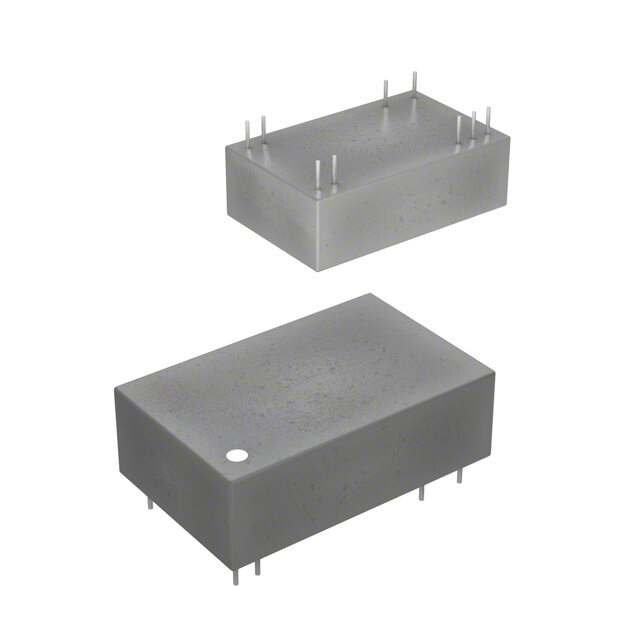

REC8-2412SRW/H2/A/M
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 8W DC/DC 2kV REG 2:1 18-36Vin 12Vout
PDF
/
Buying Options
Total Price: USD $37.87
Unit Price: USD $37.87431
≥1 USD $37.87431
≥10 USD $35.73048
≥100 USD $33.708
≥500 USD $31.8
≥1000 USD $30
≥3000 USD $28.30189
Inventory: 1154
Minimum: 1
-
+
Technical Details
Technical
Control Features Enable, Active High
Max Output Voltage 12V
Output Power 8W
Output Current 666mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Max Output Current 666mA
Output Voltage 12V
Voltage - Input (Max) 36V
Voltage - Isolation 2kV
Efficiency 86%
Qualification Status Not Qualified
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 20.3mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 8W
Subcategory Other Analog ICs
Additional Feature SEATED HGT CALCULATED
Applications ITE (Commercial), Medical
Type Isolated Module
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, SCP
Size / Dimension 1.26Lx0.80W x 0.40 H 32.0mmx20.3mmx10.2mm
Series ECONOLINE REC8 (8W)
Packaging Tube
Operating Temperature -40°C~85°C
Isolation Isolated
Nominal Input Voltage 24V
Total Power Output-Max 8W
Physical
Weight 18g
Number of Pins 9
Package / Case 24-DIP Module, 9 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 32mm
Height 10.2mm
