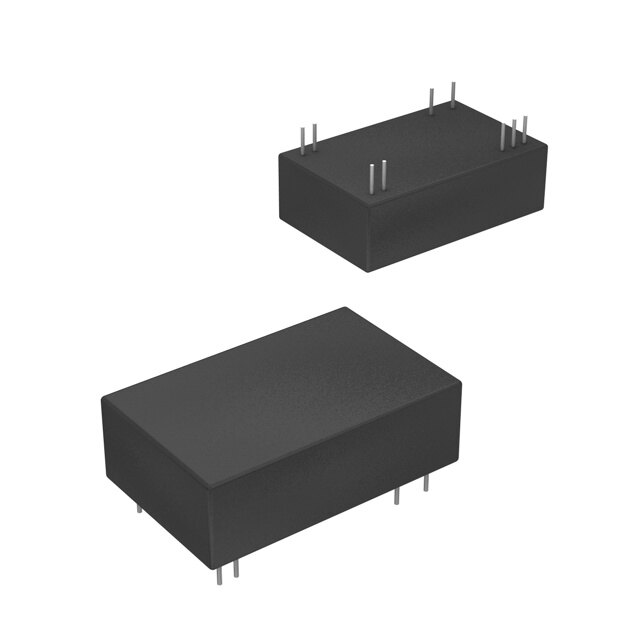

REC6-2415DRW/R8/C
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 6W 18-36VIN +/-15VOUT
PDF
/
Inventory: 5830
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 10.2mm
Technical
Nominal Input Voltage 24V
Total Power Output-Max 6W
Voltage - Output 2 -15V
Max Output Voltage 15V
Output Power 6W
Output Current 200mA
Current - Output (Max) 200mA 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Max Output Current 200mA
Output Voltage 15V
Voltage - Input (Max) 36V
Voltage - Isolation 8kV
Efficiency 83%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-PDMA-T9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 6W
Subcategory Other Analog ICs
Applications ITE (Commercial), Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.26Lx0.80W x 0.40 H 32.0mmx20.3mmx10.2mm
Series ECONOLINE REC6/R (6W)
Packaging Tube
Operating Temperature -40°C~75°C
Physical
Weight 14g
Package / Case 24-DIP Module, 9 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
