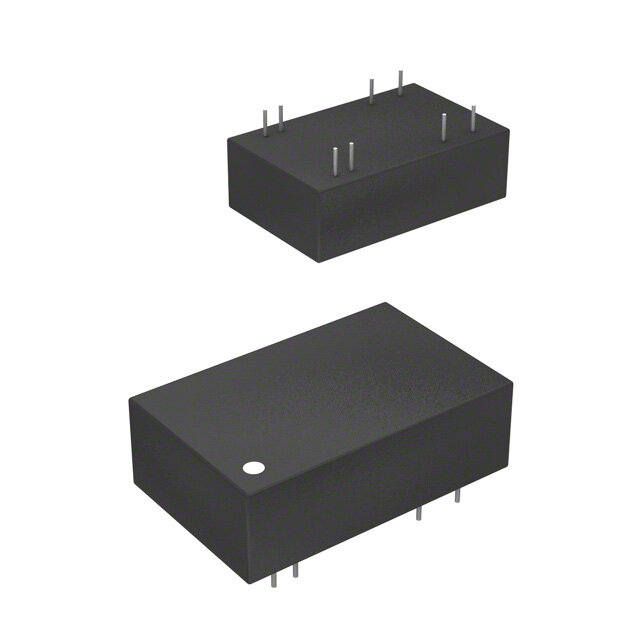

REC5-0512DRW/H6/A
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 5W 4.5-9VIN +/-12VOUT
PDF
/
Inventory: 5032
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Weight 13g
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Mount Through Hole
Technical
Operating Temperature -40°C~75°C
Packaging Tube
Series ECONOLINE REC5 (5W)
Size / Dimension 1.26Lx0.80W x 0.40 H 32.0mmx20.3mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Subcategory Other Analog ICs
Max Power Dissipation 5W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P9
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 75%
Voltage - Isolation 6kV
Voltage - Input (Max) 9V
Output Voltage 12V
Max Output Current 210mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 210mA 210mA
Output Current 210mA
Output Power 5W
Max Output Voltage 12V
Voltage - Output 2 -12V
Total Power Output-Max 5W
Nominal Input Voltage 5V
Supply Chain
Factory Lead Time 9 Weeks
Dimensions
Height 10.2mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
