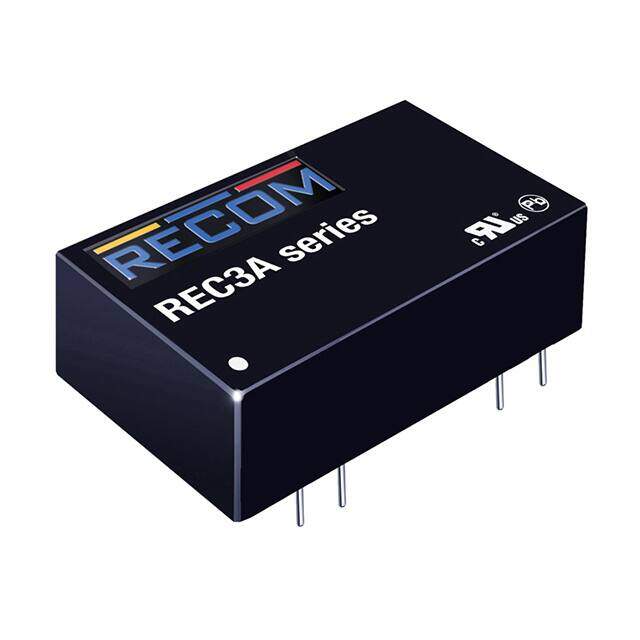

REC3A-0505SW/H2/X1
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 3W
PDF
/
Buying Options
Total Price: USD $11.46
Unit Price: USD $11.4576
≥1 USD $11.4576
≥10 USD $11.36608
≥100 USD $11.27984
≥500 USD $11.106304
≥1000 USD $10.759408
≥3000 USD $9.8208
Inventory: 113
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 10.2mm
Technical
Max Output Voltage 5V
Output Current 600mA
Current - Output (Max) 600mA
Voltage - Input (Min) 4.5V
Output Voltage 5V
Voltage - Input (Max) 9V
Voltage - Isolation 2kV
Efficiency 76%
Number of Outputs 1
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP, UVLO
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series REC3A (3W)
Packaging Tube
Operating Temperature -40°C~100°C With Derating
Physical
Weight 13g
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
