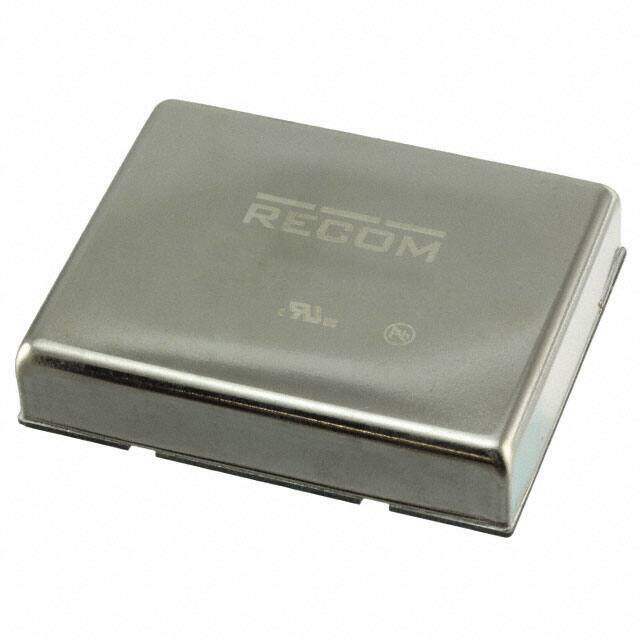

REC30-4815DZ
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 30W 18-75VIN +/-15VOU
PDF
/
Inventory: 9849
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 40.6mm
Length 50.8mm
Height 10.2mm
Technical
Voltage - Output 2 -15V
Max Output Voltage 16.5V
Control Features Enable, Active High
Output Power 30W
Output Current 1A
Current - Output (Max) 1A 1A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 15V
Max Output Current 1A
Output Voltage 13.5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 88.5%
Number of Outputs 2
JESD-30 Code R-PDMA-P7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 30W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.60W x 0.40 H 50.8mmx40.6mmx10.2mm
Series ECONOLINE REC30-Z (30W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 48g
Package / Case 8-DIP Module, 7 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
