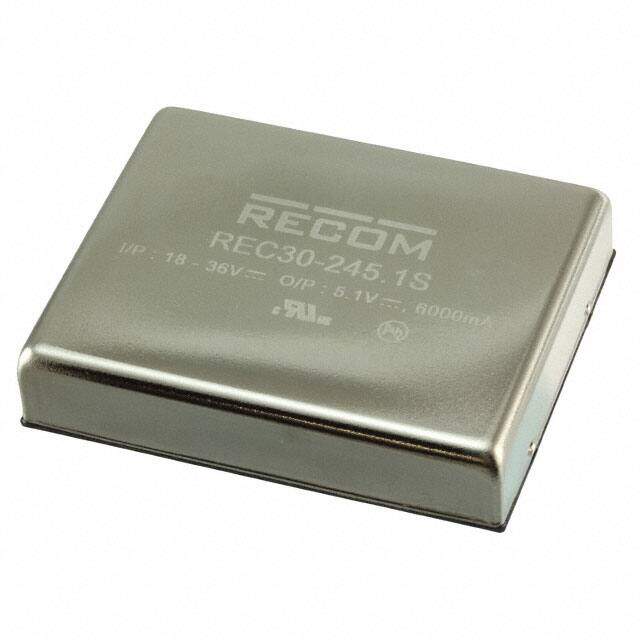

REC30-245.1SZ
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
RECOM POWER REC30-245.1SZ Isolated Board Mount DC/DC Converter, Fixed, Adjustable, 1 Output, 9 V, 36 V, 30 W, 5.1 V
PDF
/
Buying Options
Total Price: USD $69.15
Unit Price: USD $69.1504
≥1 USD $69.1504
≥10 USD $67.05072
≥100 USD $64.95544
≥500 USD $62.860512
≥1000 USD $60.765056
≥3000 USD $58.669688
Inventory: 86
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 40.6mm
Height 10.2mm
Technical
Min Input Voltage (DC) 9V
Max Input Voltage (DC) 36V
Max Output Power 30W
Current - Output 1 6A
Max Output Voltage 5.61V
Control Features Enable, Active High
Output Power 30W
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Output 1 5.1V
Max Output Current 6A
Output Voltage 4.59V
Voltage - Input (Max) 36V
Voltage - Isolation 1.6kV
Efficiency 87.5%
Number of Outputs 1
JESD-30 Code R-PDMA-P7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 50.8mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 30W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.60W x 0.40 H 50.8mmx40.6mmx10.2mm
Series ECONOLINE REC30-Z (30W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 48g
Package / Case 8-DIP Module, 6 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
