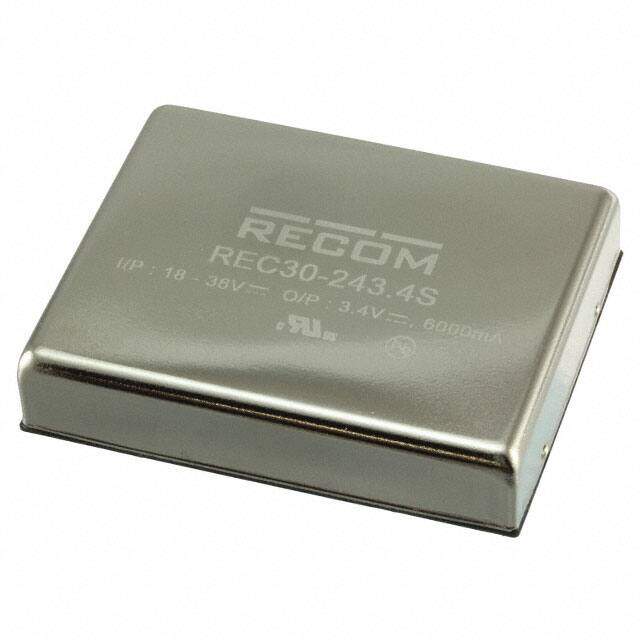

REC30-243.4S
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
RECOM POWER REC30-243.4S Isolated Board Mount DC/DC Converter, Fixed, Adjustable, 1 Output, 18 V, 36 V, 30 W, 3.4 V
PDF
/
Buying Options
Total Price: USD $62.56
Unit Price: USD $62.5592
≥1 USD $62.5592
≥10 USD $60.65136
≥100 USD $58.75672
≥500 USD $56.861024
≥1000 USD $54.96568
≥3000 USD $53.070248
Inventory: 59
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 6 Leads
Weight 48g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE REC30 (30W)
Size / Dimension 2.00Lx1.60W x 0.40 H 50.8mmx40.6mmx10.2mm
Feature Remote On/Off, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 30W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 50.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P7
Number of Outputs 1
Efficiency 87%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 36V
Output Voltage 3.06V
Max Output Current 6A
Voltage - Output 1 3.4V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Current 6A
Output Power 30W
Control Features Enable, Active High
Max Output Voltage 3.74V
Current - Output 1 6A
Max Output Power 30W
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 18V
Dimensions
Height 10.2mm
Width 40.6mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
