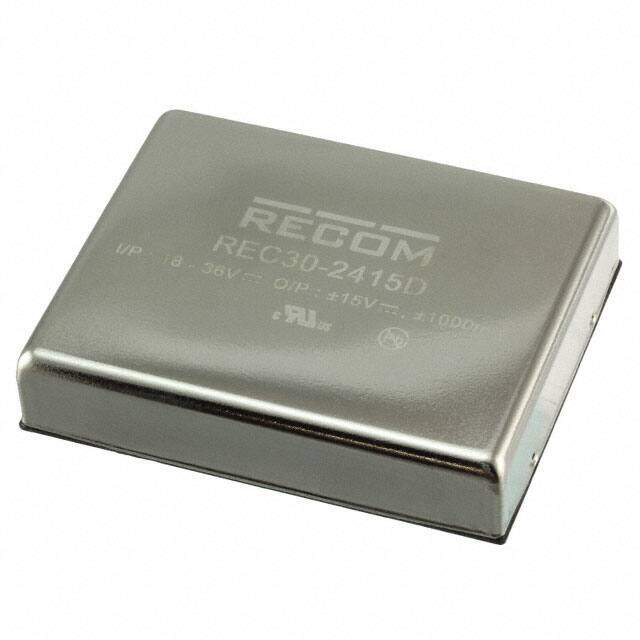

REC30-2415D
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
RECOM POWER REC30-2415D Isolated Board Mount DC/DC Converter, 2:1 Input, Through Hole, 30W, 15V, 1A, -15V, 1A
PDF
/
Buying Options
Total Price: USD $59.58
Unit Price: USD $59.5848
≥1 USD $59.5848
≥10 USD $57.77904
≥100 USD $55.97328
≥500 USD $54.167872
≥1000 USD $52.362288
≥3000 USD $50.556704
Inventory: 39
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Weight 48g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE REC30 (30W)
Size / Dimension 2.00Lx1.60W x 0.40 H 50.8mmx40.6mmx10.2mm
Feature Remote On/Off, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 30W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 40.6mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P7
Number of Outputs 2
Efficiency 89%
Voltage - Isolation 1.6kV
Output Voltage 13.5V
Max Output Current 1A
Voltage - Output 1 15V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 1A 1A
Output Current 1A
Output Power 30W
Control Features Enable, Active High
Max Output Voltage 16.5V
Voltage - Output 2 -15V
Current - Output 1 1A
Max Output Power 30W
Current - Output 2 1A
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 18V
Dimensions
Height 10.2mm
Length 50.8mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
