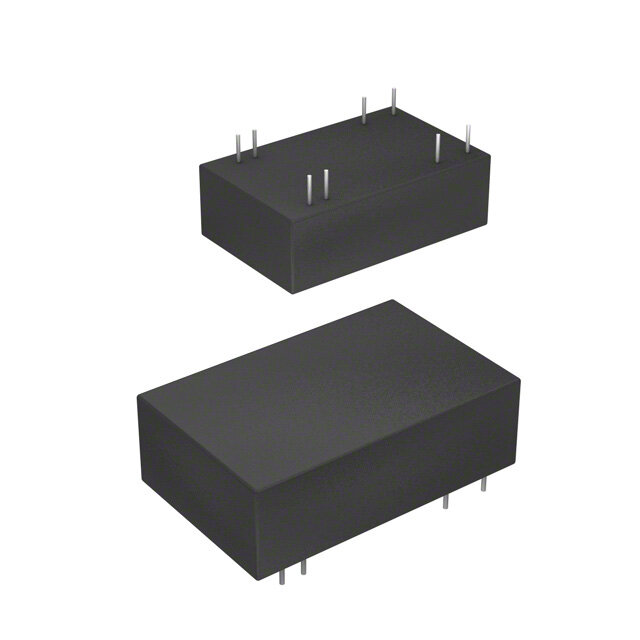

REC3-4815SRW/H4/A/CTRL
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V 3W
PDF
/
Inventory: 6731
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Weight 13g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE REC3-SRW (3W)
Size / Dimension 1.26Lx0.80W x 0.40 H 32.0mmx20.3mmx10.2mm
Feature Remote On/Off, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Subcategory Other Analog ICs
Max Power Dissipation 3W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PDMA-P9
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 86%
Voltage - Isolation 4kV
Voltage - Input (Max) 72V
Output Voltage 15V
Max Output Current 200mA
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Output Current 200mA
Output Power 3W
Control Features Enable, Active Low
Max Output Voltage 15V
Total Power Output-Max 3W
Nominal Input Voltage 48V
Dimensions
Height 10.2mm
Width 20.3mm
Compliance
RoHS Status ROHS3 Compliant
