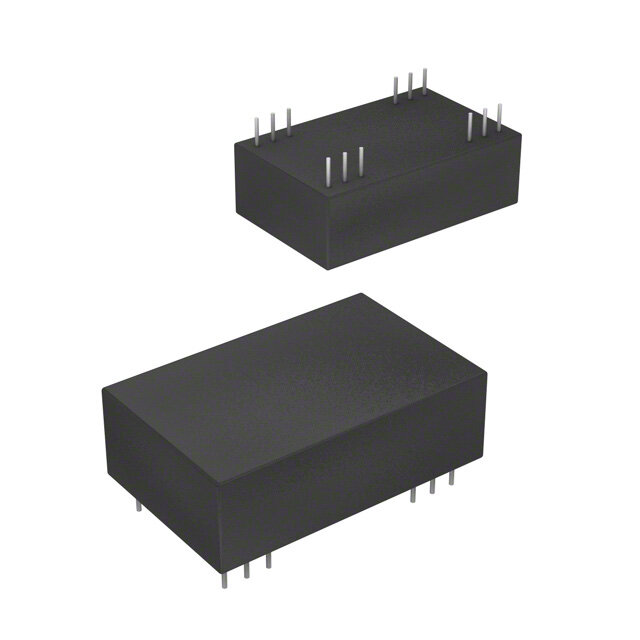

REC3-4805SRW/H/B
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 12 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 3W 36-72VIN 05VOUT
PDF
/
Inventory: 2863
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 20.3mm
Height 10.2mm
Technical
Nominal Input Voltage 48V
Total Power Output-Max 3W
Max Output Voltage 5V
Output Power 3W
Output Current 600mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 600mA
Output Voltage 5V
Voltage - Input (Max) 72V
Voltage - Isolation 1.6kV
Efficiency 79%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PDMA-P8
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.26Lx0.80W x 0.40 H 32.0mmx20.3mmx10.2mm
Series ECONOLINE REC3-SRW (3W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 13g
Package / Case 24-DIP Module, 12 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
