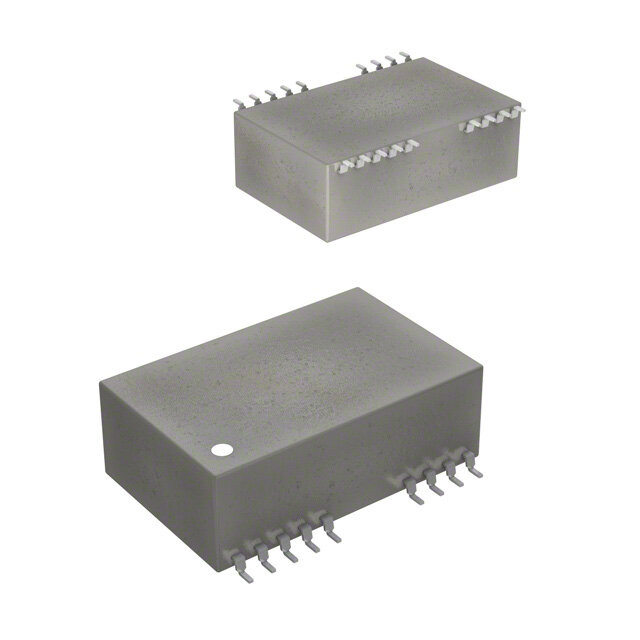

REC3-2415DR/H1/SMD
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module, 18 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 3W
PDF
/
Inventory: 7018
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 10.9mm
Technical
Nominal Input Voltage 24V
Total Power Output-Max 1.5W
Voltage - Output 2 -15V
Max Output Voltage 15V
Output Power 3W
Output Current 100mA
Current - Output (Max) 100mA 100mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 20.4V
Max Output Current 100mA
Output Voltage 15V
Voltage - Input (Max) 27.6V
Voltage - Isolation 1kV
Efficiency 75%
Qualification Status Not Qualified
Number of Outputs 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form L BEND
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 1.26Lx0.80W x 0.44 H 32.0mmx20.3mmx11.2mm
Series ECONOLINE REC3-DR (3W)
Packaging Tube
Operating Temperature -40°C~80°C
Physical
Weight 12g
Package / Case 24-SMD Module, 18 Leads
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
