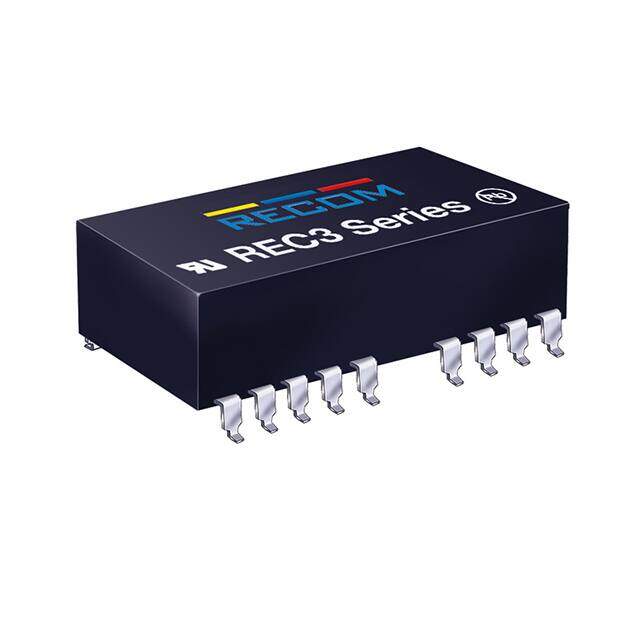

REC3-2405SR/H1/SMD
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module, 18 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 3W 24VIN 05VOUT
PDF
/
Inventory: 7478
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 24-SMD Module, 18 Leads
Number of Pins 18
Weight 12g
Technical
Operating Temperature -40°C~80°C
Packaging Tube
Series ECONOLINE REC3-SR (3W)
Size / Dimension 1.26Lx0.80W x 0.44 H 32.0mmx20.3mmx11.2mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 3W
Technology HYBRID
Terminal Position DUAL
Terminal Form L BEND
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-L24
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 65%
Voltage - Isolation 1kV
Voltage - Input (Max) 27.6V
Output Voltage 5V
Max Output Current 600mA
Voltage - Input (Min) 20.4V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Current 600mA
Output Power 3W
Max Output Voltage 5V
Total Power Output-Max 3W
Nominal Input Voltage 24V
Dimensions
Height 10.9mm
Length 32mm
Width 20.32mm
Compliance
RoHS Status ROHS3 Compliant
