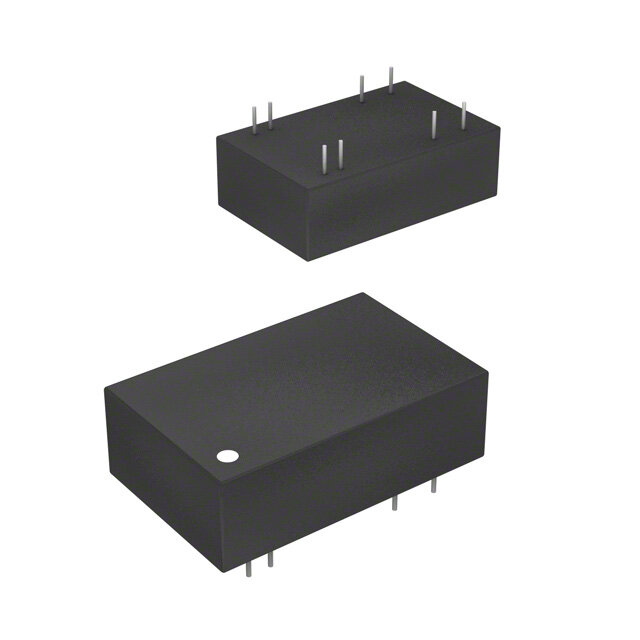

REC3-2405DRW/H2/A
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 3W 18-36VIN +/-05VOUT
PDF
/
Inventory: 1904
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 10.2mm
Technical
Isolation Isolated
Nominal Input Voltage 24V
Total Power Output-Max 3W
Voltage - Output 2 -5V
Max Output Voltage 5V
Output Power 3W
Output Current 300mA
Current - Output (Max) 300mA 300mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Max Output Current 300mA
Output Voltage 5V
Voltage - Input (Max) 36V
Voltage - Isolation 2kV
Efficiency 83%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-PDMA-P9
Depth 20.3mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.26Lx0.80W x 0.40 H 32.0mmx20.3mmx10.2mm
Series ECONOLINE REC3-DRW (3W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 13g
Number of Pins 8
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
