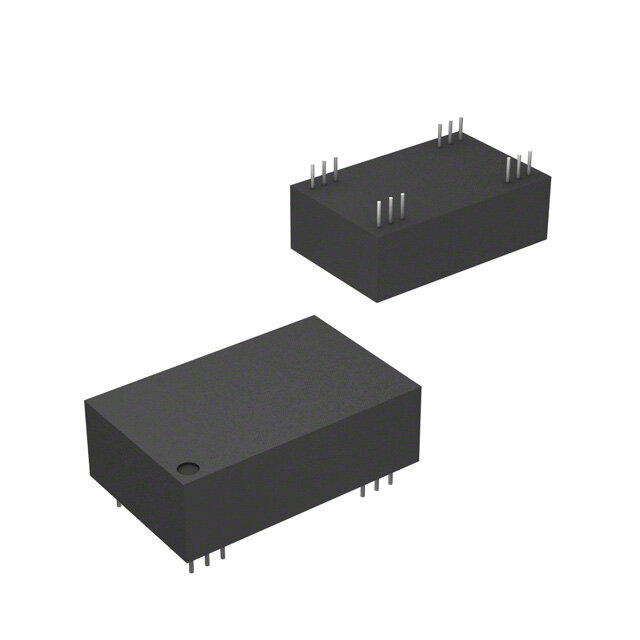

REC3-0515DRW/H/B/M
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 12 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 3W
PDF
/
Inventory: 1179
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 24-DIP Module, 12 Leads
Weight 13g
Technical
Operating Temperature -40°C~80°C
Packaging Tube
Series ECONOLINE REC3-DRW (3W)
Size / Dimension 1.26Lx0.80W x 0.40 H 32.0mmx20.3mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 3W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 86%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 9V
Output Voltage 15V
Max Output Current 100mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 100mA 100mA
Output Current 100mA
Output Power 3W
Max Output Voltage 15V
Voltage - Output 2 -15V
Total Power Output-Max 3W
Nominal Input Voltage 5V
Dimensions
Height 10.2mm
Compliance
RoHS Status ROHS3 Compliant
