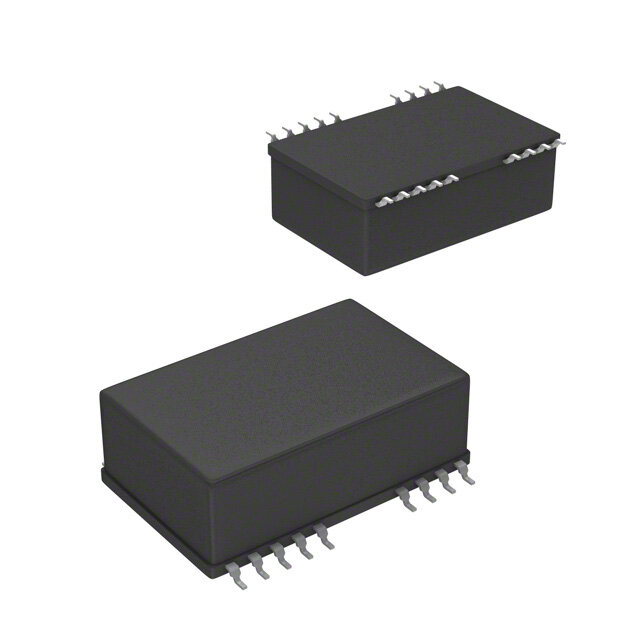

REC3-0509SRW/H6/A/SMD/CTRL
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module, 18 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 9V 3W
PDF
/
Inventory: 9160
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 10.9mm
Technical
Nominal Input Voltage 5V
Total Power Output-Max 2.97W
Max Output Voltage 9V
Control Features Enable, Active Low
Output Power 3W
Output Current 330mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 330mA
Output Voltage 9V
Voltage - Isolation 6kV
Efficiency 83%
Qualification Status Not Qualified
Number of Outputs 1
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Subcategory Other Analog ICs
Applications ITE (Commercial), Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 1.26Lx0.78W x 0.44 H 32.0mmx19.9mmx11.2mm
Series ECONOLINE REC3-SRW (3W)
Packaging Tube
Operating Temperature -40°C~80°C
Physical
Weight 13g
Package / Case 24-SMD Module, 18 Leads
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
