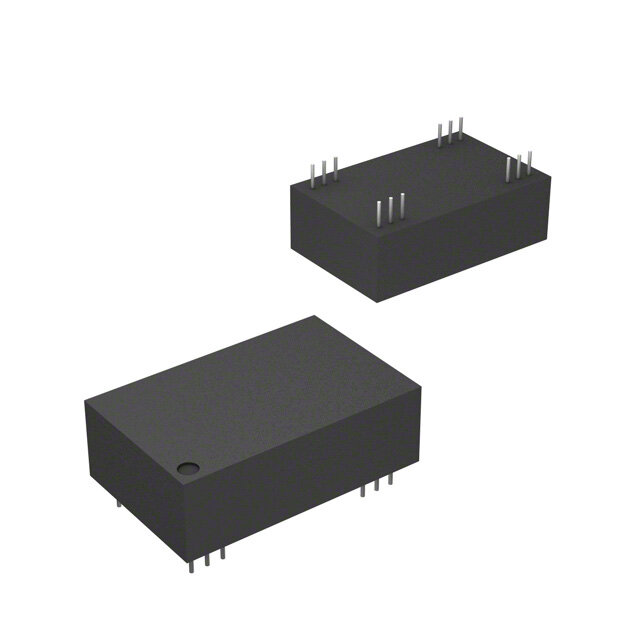

REC3-0505SR/H1
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 12 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 3W 5VIN 05VOUT
PDF
/
Buying Options
Total Price: USD $16.13
Unit Price: USD $16.1304
≥1 USD $16.1304
≥10 USD $15.75024
≥100 USD $15.6288
≥500 USD $15.384512
≥1000 USD $14.651824
≥3000 USD $13.824888
Inventory: 84
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 20.3mm
Height 10.2mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.75V
Nominal Output Voltage 5V
Isolation Isolated
Max Output Power 3W
Nominal Input Voltage 5V
Current - Output 1 600mA
Max Output Voltage 5V
Output Power 3W
Output Current 600mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.25V
Max Output Current 600mA
Output Voltage 5V
Voltage - Isolation 1kV
Efficiency 65%
Qualification Status Not Qualified
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 32mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 1.26Lx0.80W x 0.40 H 32.0mmx20.3mmx10.2mm
Series ECONOLINE REC3-SR (3W)
Packaging Tube
Operating Temperature -40°C~80°C
Physical
Weight 12g
Number of Pins 8
Package / Case 24-DIP Module, 12 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
