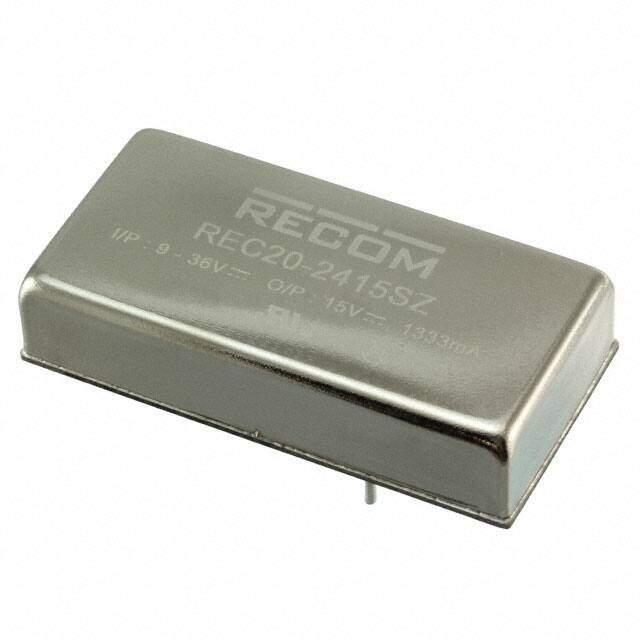

REC20-2415SZ
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
RECOM POWER REC20-2415SZ Isolated Board Mount DC/DC Converter, Fixed, Adjustable, 1 Output, 9 V, 36 V, 20 W, 15 V
PDF
/
Inventory: 7263
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Weight 27g
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Series ECONOLINE REC20-Z (20W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature Remote On/Off, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 20W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 50.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P6
Number of Outputs 1
Efficiency 89%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 36V
Output Voltage 13.5V
Max Output Current 1.33A
Voltage - Output 1 15V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Current 1.333A
Output Power 20W
Control Features Enable, Active High
Max Output Voltage 16.5V
Current - Output 1 1.33A
Max Output Power 20W
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 9V
Dimensions
Height 10.2mm
Width 25.4mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
