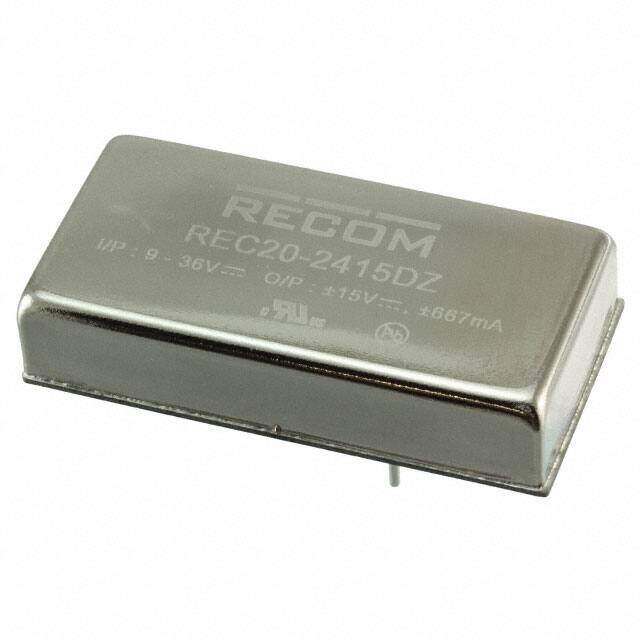

REC20-2415DZ
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
RECOM POWER REC20-2415DZ Isolated Board Mount DC/DC Converter, 2:1 Input, Through Hole, 20W, 15V, 667mA, -15V, 667mA
PDF
/
Inventory: 1520
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Weight 27g
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Series ECONOLINE REC20-Z (20W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature Remote On/Off, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 20W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 25.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P6
Number of Outputs 2
Efficiency 89%
Voltage - Isolation 1.6kV
Output Voltage -15V
Max Output Current 667mA
Voltage - Output 1 15V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 667mA 667mA
Output Current 667mA
Output Power 20W
Control Features Enable, Active High
Max Output Voltage -15V
Current - Output 1 667mA
Max Output Power 20W
Current - Output 2 667mA
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 9V
Dimensions
Height 10.2mm
Length 50.8mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
