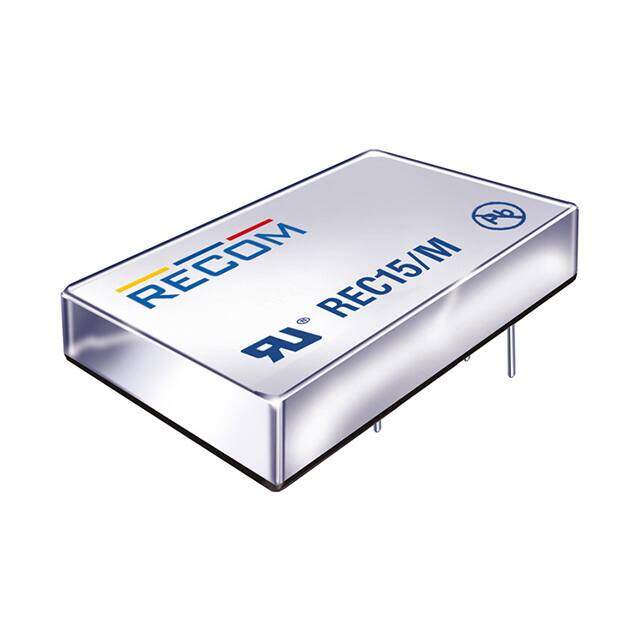

REC15-2415DZ/H2/M/X2
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 15W
PDF
/
Inventory: 9957
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Weight 27g
Technical
Operating Temperature -40°C~90°C With Derating
Series ECONOLINE REC15/M (15W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial), Medical
Number of Outputs 2
Efficiency 86%
Voltage - Isolation 2kV
Voltage - Input (Max) 36V
Output Voltage 15V
Voltage - Input (Min) 18V
Current - Output (Max) 500mA 500mA
Output Current 500mA
Output Power 15W
Max Output Voltage 15V
Voltage - Output 2 -15V
Dimensions
Height 10.2mm
Compliance
RoHS Status ROHS3 Compliant
