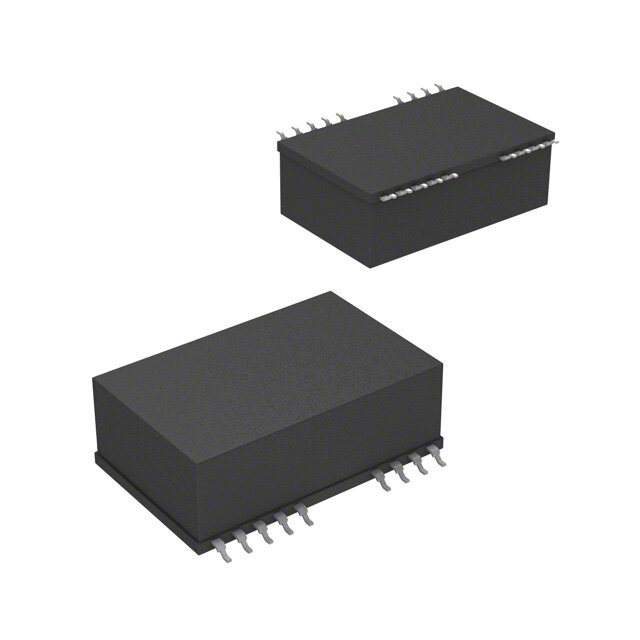

REC10-2415DRW/H2/A/M/SMD
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module, 18 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 10W 24VIN +/-15VOUT
PDF
/
Inventory: 8303
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 11.2mm
Technical
Nominal Input Voltage 24V
Voltage - Output 2 -15V
Max Output Voltage 15V
Control Features Enable, Active High
Output Power 10W
Output Current 333mA
Current - Output (Max) 333mA 333mA
Voltage - Input (Min) 18V
Max Output Current 333mA
Output Voltage 15V
Voltage - Input (Max) 36V
Voltage - Isolation 2kV
Efficiency 86%
Qualification Status Not Qualified
Number of Outputs 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Max Power Dissipation 10W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, SCP
Size / Dimension 1.26Lx0.78W x 0.44 H 32.0mmx19.9mmx11.2mm
Series ECONOLINE REC10 (10W)
Packaging Tube
Operating Temperature -40°C~75°C
Physical
Weight 18g
Package / Case 24-SMD Module, 18 Leads
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
